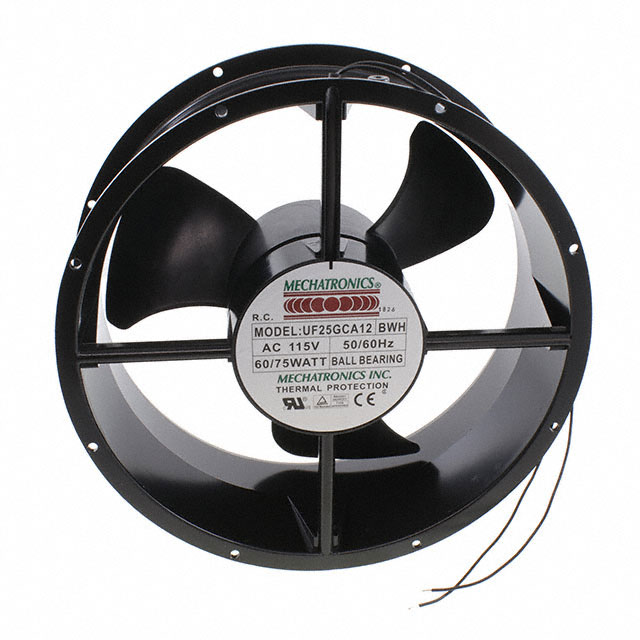

UF25GCA12-BWHR

Active

Mechatronics Fan Group

FAN AXIAL 254X89MM 115VAC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC Axial Part Numbering Guide Datasheet

UF25GCA12-BWHR

Active

Mechatronics Fan Group

FAN AXIAL 254X89MM 115VAC WIRE

Deep-Dive with AI

DocumentsAC Axial Part Numbering Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF25GCA12-BWHR	UF25G Series

Air Flow	680 CFM	550 - 812 CFM
Air Flow	19.04 m³/min	15.4 - 22.74 m³/min
Approval Agency	CE, cUL, TUV, UL	CE, ETL, TUV, cETL, CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	660 mA	0.29 - 660 mA
Current Rating (Amps)	-	0.29 A
Current Rating (Amps)	-	0.14 A
Fan Type	Tubeaxial	Tubeaxial
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor, Speed Sensor (Tach), Dual Voltage, Salt Fog Rated
Ingress Protection	-	IP55 - Dust Protected, Water Resistant
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum	Aluminum
Noise	62 dB(A)	55 - 65 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	75 W	33 - 98 W
RPM	2600 RPM	1650 - 3200 RPM
Size / Dimension	Round	Round
Size / Dimension [diameter]	10 in	10 in
Static Pressure	92.2 Pa	92.2 - 204.3 Pa
Static Pressure	0.37 in H2O	0.37 - 0.82 in H2O
Termination	2 Wire Leads	2 Terminals, 2 Wire Leads
Termination	-	3 Terminals
Voltage - Rated	115 VAC	115 - 230 VAC
Voltage - Rated	-	230 VAC
Voltage - Rated	-	115 VAC
Weight	1.9 kg	1.9 kg
Weight	4.1 lbs	4.1 lbs
Width [y]	89 mm	89 mm

UF25G Series

FAN AXIAL 254X89MM 230VAC TERM

Part	Air Flow	Air Flow	RPM	Material - Blade	Bearing Type	Noise	Fan Type	Approval Agency	Termination	Current Rating (Amps)	Material - Frame	Weight	Weight	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Power (Watts)	Features	Size / Dimension [diameter]	Size / Dimension	Width [y]	Ingress Protection	Termination	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]	Voltage - Rated [Max]	Voltage - Rated [Min]
Mechatronics Fan Group UF25GCB23-BTHR	22.74 m³/min	812 CFM	3200 RPM	Polybutylene Terephthalate (PBT)	Ball	65 dB	Tubeaxial	CE, cETL, ETL, TUV	2 Terminals	450 mA	Aluminum	1.9 kg	4.1 lbs	204.3 Pa	0.82 in H2O	70 °C	70 °C	-40 °C	-40 °C	230 VAC	98 W	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	10 in	Round	89 mm
Mechatronics Fan Group UF25GC23-BWHR-L24	15.4 mł/min	550 CFM	1650 RPM	Polybutylene Terephthalate (PBT)	Ball	55 dB	Tubeaxial	CE, cUL, TUV, UL	2 Wire Leads	140 mA	Aluminum	1.9 kg	4.1 lbs	99.6 Pa	0.4 in H2O	70 °C	70 °C	-40 °C	-40 °C	230 VAC	33 W	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	10 in	Round	89 mm
Mechatronics Fan Group UF25GC12-BWHNR	15.4 mł/min	550 CFM	1650 RPM	Polybutylene Terephthalate (PBT)	Ball	55 dB	Tubeaxial	CE, cUL, TUV, UL	2 Wire Leads	0.29 A	Aluminum	1.9 kg	4.1 lbs	99.6 Pa	0.4 in H2O	70 °C	70 °C	-40 °C	-40 °C	115 VAC	33 W	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	10 in	Round	89 mm	IP55 - Dust Protected, Water Resistant
Mechatronics Fan Group UF25GC12-BTHNR	15.4 mł/min	550 CFM	1650 RPM	Polybutylene Terephthalate (PBT)	Ball	55 dB	Tubeaxial	CE, cUL, TUV, UL	2 Terminals	0.29 A	Aluminum	1.9 kg	4.1 lbs	99.6 Pa	0.4 in H2O	70 °C	70 °C	-40 °C	-40 °C	115 VAC	33 W	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	10 in	Round	89 mm	IP55 - Dust Protected, Water Resistant
Mechatronics Fan Group UF25GC23-BTHR-B1	15.4 mł/min	550 CFM	1650 RPM	Polybutylene Terephthalate (PBT)	Ball	55 dB	Tubeaxial	CE, cUL, TUV, UL		140 mA	Aluminum	1.9 kg	4.1 lbs	99.6 Pa	0.4 in H2O	70 °C	70 °C	-40 °C	-40 °C	230 VAC	33 W	Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP)	10 in	Round	89 mm		3 Terminals
Mechatronics Fan Group UF25GC23-BTHR	15.4 mł/min	550 CFM	1650 RPM	Polybutylene Terephthalate (PBT)	Ball	55 dB	Tubeaxial	CE, cUL, TUV, UL	2 Terminals	140 mA	Aluminum	1.9 kg	4.1 lbs	99.6 Pa	0.4 in H2O	70 °C	70 °C	-40 °C	-40 °C	230 VAC	33 W	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	10 in	Round	89 mm
Mechatronics Fan Group UF25GC12/23-BWHR	15.4 mł/min	550 CFM	1650 RPM	Polybutylene Terephthalate (PBT)	Ball	55 dB	Tubeaxial	CE, cUL, TUV, UL	2 Wire Leads		Aluminum	1.9 kg	4.1 lbs	99.6 Pa	0.4 in H2O	70 °C	70 °C	-40 °C	-40 °C		33 W	Dual Voltage, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	10 in	Round	89 mm			0.29 A	0.14 A	230 VAC	115 VAC
Mechatronics Fan Group UF25GC23-BTHNR	15.4 mł/min	550 CFM	1650 RPM	Polybutylene Terephthalate (PBT)	Ball	55 dB	Tubeaxial	CE, cUL, TUV, UL	2 Terminals	140 mA	Aluminum	1.9 kg	4.1 lbs	99.6 Pa	0.4 in H2O	70 °C	70 °C	-40 °C	-40 °C	230 VAC	33 W	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	10 in	Round	89 mm	IP55 - Dust Protected, Water Resistant
Mechatronics Fan Group UF25GC12-BTHNSR	15.4 mł/min	550 CFM	1650 RPM	Polybutylene Terephthalate (PBT)	Ball	55 dB	Tubeaxial	CE, cUL, TUV, UL	2 Terminals	0.29 A	Aluminum	1.9 kg	4.1 lbs	99.6 Pa	0.4 in H2O	70 °C	70 °C	-40 °C	-40 °C	115 VAC	33 W	Permanent Split Capacitor Motor, Salt Fog Rated, Thermal Overload Protector (TOP)	10 in	Round	89 mm	IP55 - Dust Protected, Water Resistant
Mechatronics Fan Group UF25GC23-BWHR	15.4 mł/min	550 CFM	1650 RPM	Polybutylene Terephthalate (PBT)	Ball	55 dB	Tubeaxial	CE, cUL, TUV, UL	2 Wire Leads	140 mA	Aluminum	1.9 kg	4.1 lbs	99.6 Pa	0.4 in H2O	70 °C	70 °C	-40 °C	-40 °C	230 VAC	33 W	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	10 in	Round	89 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 88.31
		10	$ 79.36
		25	$ 78.25
		50	$ 73.22
		100	$ 71.54

Description

General part information

UF25G Series

Fan Tubeaxial 115VAC Round - 254mm Dia Ball 680.0 CFM (19.04mł/min) 2 Wire Leads

Documents

Technical documentation and resources

AC Axial Part Numbering Guide

Datasheet
