787446-1

Obsolete

TE Connectivity AMP Connectors

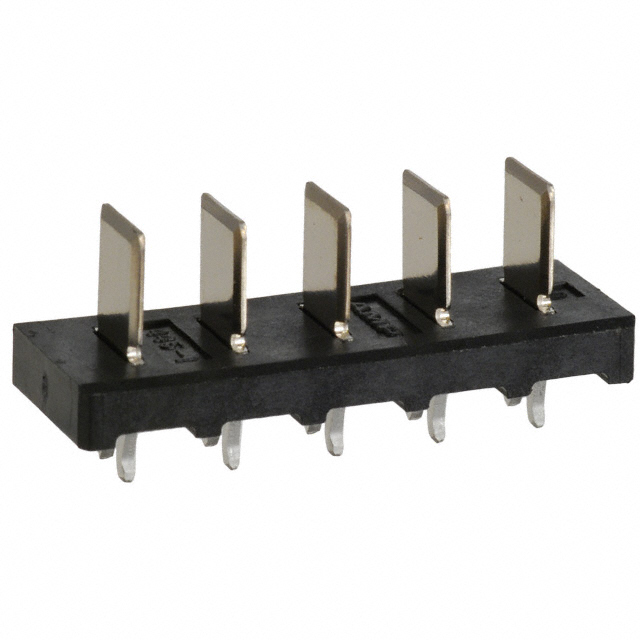

CONN HDR 5POS 5.00MM KINKED PIN

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN HDR 5POS 5.00MM KINKED PIN

Technical Specifications

Parameters and characteristics for this part

CONN HDR 5POS 5.00MM KINKED PIN

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Current Rating (Amps)	Contact Material	Number of Rows	Features	Mounting Type	Voltage Rating	Pitch [x]	Pitch [x]	Termination	Fastening Type
TE Connectivity AMP Connectors 787446-1	Header, Male Blades	70 °C	-30 ░C	Black	Nickel	1.9 µm	74.8 µin	Polyphthalamide (PPA)	7 A	Brass	1	Keyless	Through Hole	50 V	5 mm	0.197 in	Kinked Pin	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Header, Male Blades Connector Kinked Pin 0.197" (5.00mm) Through Hole
