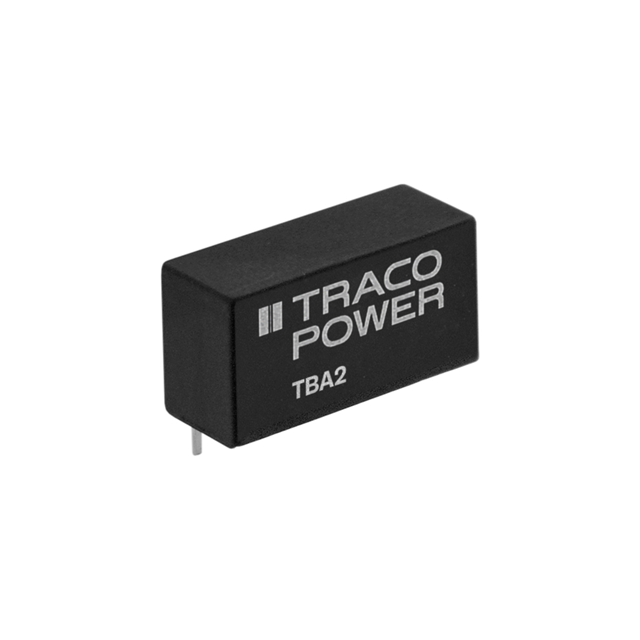

TBA 2-0512

Active

Traco Power

MODULE DC-DC 5VIN 1-OUT 12V 0.165A 2W 4-PIN SIP MODULE

Search across all available documentation for this part.

Active

Traco Power

MODULE DC-DC 5VIN 1-OUT 12V 0.165A 2W 4-PIN SIP MODULE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TBA 2-0512	TBA 2 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	165 mA	80 - 165 mA
Current - Output (Max)	-	400 mA
Efficiency	-	78 - 83 %
Features	SCP	SCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1 - 2
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	6-SIP Module, 4 Leads	6-SIP Module, 5 Leads, 6-SIP Module, 4 Leads
Power (Watts)	2 W	1.9 - 2 W
Size / Dimension [x]	19.6 mm	19.6 mm
Size / Dimension [x]	0.77 in	0.77 in
Size / Dimension [y]	0.3 "	0.3 "
Size / Dimension [y]	7.6 mm	7.6 mm
Size / Dimension [z]	10.2 mm	10.2 mm
Size / Dimension [z]	0.4 "	0.4 "
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	5.5 V	5.5 - 26.4 V
Voltage - Input (Min) [Min]	4.5 V	4.5 - 21.6 V
Voltage - Isolation	1.5 kV	1.5 kV
Voltage - Output 1	12 V	5 - 12 V
Voltage - Output 2	-	-12 V

DC DC CONVERTER +/-12V 1.9W

Part	Voltage - Isolation	Voltage - Input (Min) [Min]	Features	Voltage - Input (Max) [Max]	Mounting Type	Package / Case	Number of Outputs	Current - Output (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 2	Voltage - Output 1	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Type	Applications	Efficiency	Current - Output (Max) [Max]
Traco Power TBA 2-0522	1.5 kV	4.5 V	SCP	5.5 V	Through Hole	6-SIP Module, 5 Leads	2	80 mA	-40 °C	90 °C	-12 V	12 V	1.9 W	19.6 mm	0.77 in	0.3 "	10.2 mm	0.4 "	7.6 mm	Isolated Module	ITE (Commercial)
Traco Power TBA 2-1222	1.5 kV	10.8 V	SCP	13.2 V	Through Hole	6-SIP Module, 5 Leads	2	80 mA	-40 °C	90 °C	-12 V	12 V	1.9 W	19.6 mm	0.77 in	0.3 "	10.2 mm	0.4 "	7.6 mm	Isolated Module	ITE (Commercial)	83 %
Traco Power TBA 2-1212	1.5 kV	10.8 V	SCP	13.2 V	Through Hole	6-SIP Module, 4 Leads	1	165 mA	-40 °C	90 °C		12 V	2 W	19.6 mm	0.77 in	0.3 "	10.2 mm	0.4 "	7.6 mm	Isolated Module	ITE (Commercial)
Traco Power TBA 2-2411	1.5 kV	21.6 V	SCP	26.4 V	Through Hole	6-SIP Module, 4 Leads	1		-40 °C	90 °C		5 V	2 W	19.6 mm	0.77 in	0.3 "	10.2 mm	0.4 "	7.6 mm	Isolated Module	ITE (Commercial)	78 %	400 mA
Traco Power TBA 2-0512	1.5 kV	4.5 V	SCP	5.5 V	Through Hole	6-SIP Module, 4 Leads	1	165 mA	-40 °C	90 °C		12 V	2 W	19.6 mm	0.77 in	0.3 "	10.2 mm	0.4 "	7.6 mm	Isolated Module	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 12V 165mA 4.5V - 5.5V Input
