LNX-0602-S3
ActiveAntaira Technologies

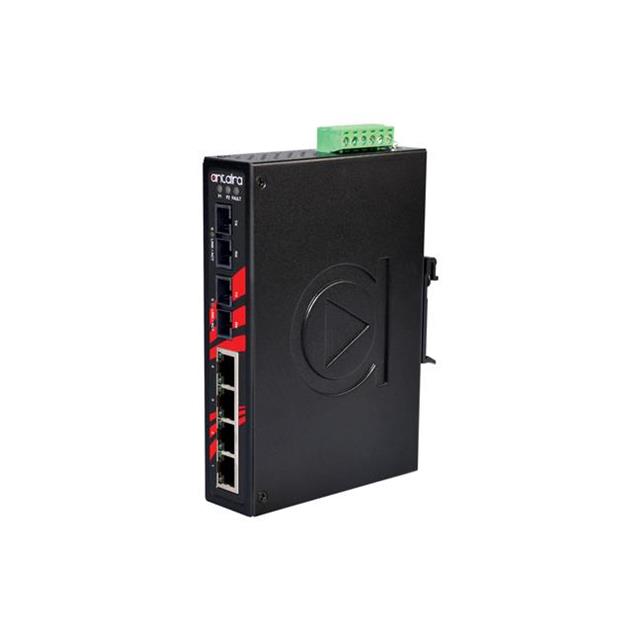

UNMANAGED ETHERNET SWITCH
LNX-0602-S3
ActiveAntaira Technologies
UNMANAGED ETHERNET SWITCH
Description
General part information
LNX-0602-S3
Network Switch - Unmanaged 6 Ports IP30
Technical Specifications
Parameters and characteristics for this part
| Specification | LNX-0602-S3 |
|---|---|
| Configuration | Fixed |
| Connector Type | SC |
| Copper Ports | 4 |
| Copper Type | 10/100 |
| Fiber Mode | Singlemode |
| Fiber Ports | 2 |
| Fiber Type | 100BASE-FX |
| Ingress Protection | IP30 |
| Mounting Type | DIN Rail |
| Number of Ports | 6 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Type | Switch - Unmanaged |
| Voltage - Input (Maximum) | 48 V |
| Voltage - Input (Minimum) | 12 V |
