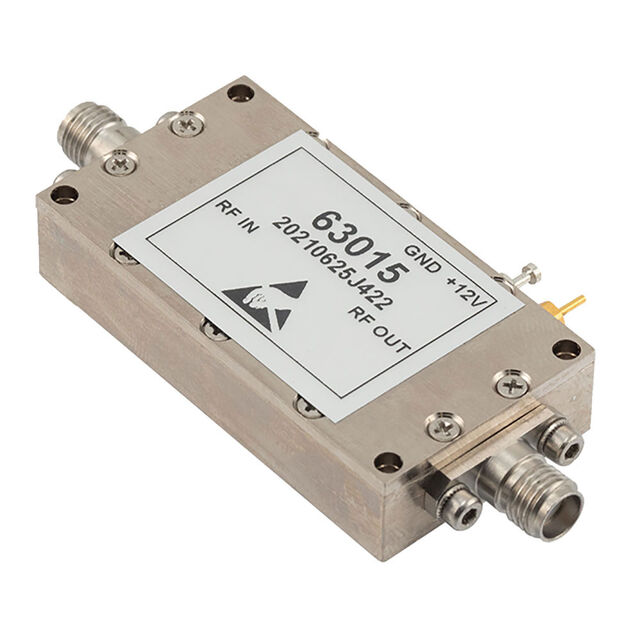

FMAM63015
ActiveFairview Microwave
LOWNOISEAMP 100MHZ-18GHZ P1DB SM
FMAM63015
ActiveFairview Microwave
LOWNOISEAMP 100MHZ-18GHZ P1DB SM
Description
General part information
FMAM63015
RF Amplifier IC Radar 100MHz ~ 18GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAM63015 |
|---|---|
| Current - Supply | 190 mA |
| Frequency (Max) | 18 GHz |
| Frequency (Min) | 100 MHz |
| Gain | 41 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 3 dB |
| P1dB | 17.5 dBm |
| Package / Case | Module, SMA Connectors |
| RF Type | Radar |
| Voltage - Supply (Maximum) | 15 V |
| Voltage - Supply (Minimum) | 10 VDC |
