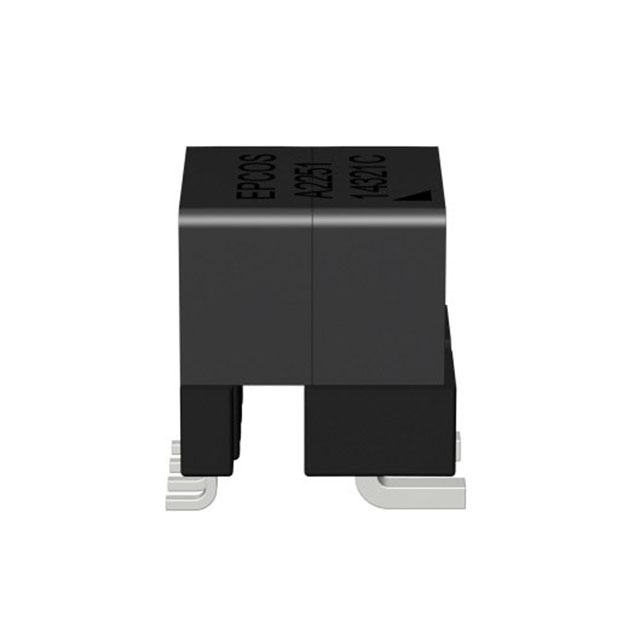

B78417A2285A003
ActiveEPCOS - TDK Electronics
CURR SENSE XFMR 1:50 SMD
B78417A2285A003
ActiveEPCOS - TDK Electronics
CURR SENSE XFMR 1:50 SMD
Description
General part information
B78417A2285A003
1:50 Current Sense Transformer 50kHz ~ 250kHz 1.9mOhm Primary, 2.1Ohm Secondary 1.7 mH Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | B78417A2285A003 |
|---|---|
| DC Resistance (DCR) (Primary) | 1.9 mOhm |
| DC Resistance (DCR) (Secondary) | 2.1 Ohm |
| DC Resistance Type | Primary, Secondary |
| Frequency Range (Max) | 250 kHz |
| Frequency Range (Min) | 50 kHz |
| Height - Seated (Max) | 0.433 in |
| Inductance | 1.7 mH |
| Mounting Type | Surface Mount |
| Size / Dimension Length | 0.417 in |
| Size / Dimension Width | 0.48 in |
| Termination Style | Gull Wing |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 50 |
| Type | Invasive |
| Weight | 0.006 lb |
