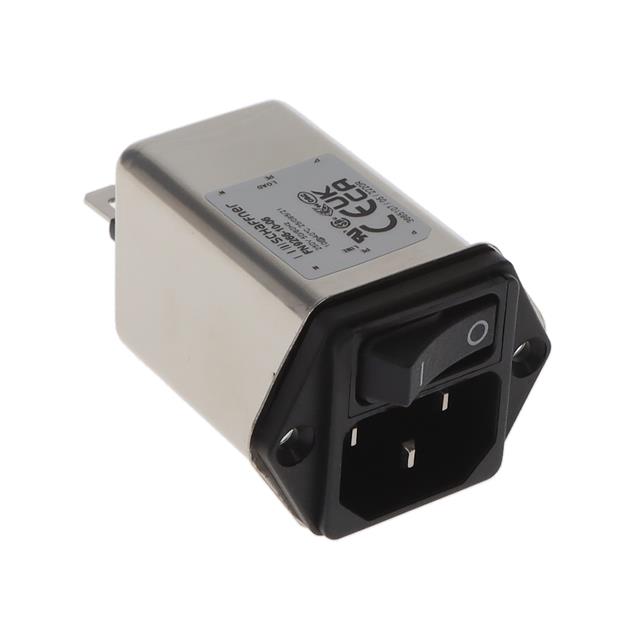

Specification	FN9266-10-06

Accomodates a Fuse	No
Approval Agency	CE, CSA, CQC, UL, ENEC
Connector Style	IEC 320-C14
Connector Type	Male Blades - Module, Receptacle
Current Rating - Filter	10 A
Filter Application	Commercial
Filter Subtype	EMI, RFI
Filter Type	Filtered
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Number of Positions	3
Panel Cutout Length	29 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	33 mm
Switch Features	Switch On-Off
Termination	Quick Connect
Termination Probe Tip OD	0.25 in

Schaffner FN9266 Series

Part	Connector Style	Number of Positions	Mounting Type	Current Rating - Filter	Filter Type	Filter Subtype	Filter Application	Termination Probe Tip OD	Termination	Panel Cutout Length	Panel Cutout Shape	Panel Cutout Width	Approval Agency	Ingress Protection	Switch Features	Connector Type	Accomodates a Fuse	Material Flammability Rating	Panel Thickness (Max)	Panel Thickness (Min)	Features
TE Connectivity AMP Connectors FN9266-1-06	IEC 320-C14	3	Flange Panel Mount	1 A	Filtered	EMI RFI	Commercial	0.25 in	Quick Connect	29 mm	Rectangular	33 mm	CE CQC CSA ENEC UL	IP40	Switch On-Off	Male Blades - Module Receptacle	No	UL94 V-0
TE Connectivity AMP Connectors FN9266SA-10-06	IEC 320-C14	3	Panel Mount Snap-In	10 A	Filtered	EMI RFI	Commercial	0.25 in	Quick Connect	29.5 mm	Rectangular	33 mm	CE CQC CSA ENEC UL	IP40	Switch On-Off	Male Blades - Module Receptacle	No	UL94 V-0	0.059 in	0.024 in	Safety Version
TE Connectivity AMP Connectors FN9266A-1-06	IEC 320-C14	3	Flange Panel Mount	1 A	Filtered	EMI RFI	Commercial	0.25 in	Quick Connect	29 mm	Rectangular	33 mm	CE CQC CSA ENEC UL	IP40	Switch On-Off	Male Blades - Module Receptacle	No	UL94 V-0			Safety Version
TE Connectivity AMP Connectors FN9266A-10-06	IEC 320-C14	3	Flange Panel Mount	10 A	Filtered	EMI RFI	Commercial	0.25 in	Quick Connect	29 mm	Rectangular	33 mm	CE CQC CSA ENEC UL	IP40	Switch On-Off	Male Blades - Module Receptacle	No	UL94 V-0			Safety Version
TE Connectivity AMP Connectors FN9266B-10-06	IEC 320-C14	3	Flange Panel Mount	10 A	Filtered	EMI RFI	Commercial Medical	0.25 in	Quick Connect	29 mm	Rectangular	33 mm	CE CQC CSA ENEC UL	IP40	Switch On-Off	Male Blades - Module Receptacle	No	UL94 V-0
TE Connectivity AMP Connectors FN9266SA-6-06	IEC 320-C14	3	Panel Mount Snap-In	6 A	Filtered	EMI RFI	Commercial	0.25 in	Quick Connect	29.5 mm	Rectangular	33 mm	CE CQC CSA ENEC UL	IP40	Switch On-Off	Male Blades - Module Receptacle	No	UL94 V-0	0.059 in	0.024 in	Safety Version
TE Connectivity AMP Connectors FN9266B-10-06	IEC 320-C14	3	Flange Panel Mount	10 A	Filtered	EMI RFI	Commercial Medical	0.25 in	Quick Connect	29 mm	Rectangular	33 mm	CE CQC CSA ENEC UL	IP40	Switch On-Off	Male Blades - Module Receptacle	No	UL94 V-0
TE Connectivity AMP Connectors FN9266SA-1-06	IEC 320-C14	3	Panel Mount Snap-In	1 A	Filtered	EMI RFI	Commercial	0.25 in	Quick Connect	29.5 mm	Rectangular	33 mm	CE CQC CSA ENEC UL	IP40	Switch On-Off	Male Blades - Module Receptacle	No	UL94 V-0	0.059 in	0.024 in	Safety Version
TE Connectivity AMP Connectors FN9266SA-1-06	IEC 320-C14	3	Panel Mount Snap-In	1 A	Filtered	EMI RFI	Commercial	0.25 in	Quick Connect	29.5 mm	Rectangular	33 mm	CE CQC CSA ENEC UL	IP40	Switch On-Off	Male Blades - Module Receptacle	No	UL94 V-0	0.059 in	0.024 in	Safety Version
TE Connectivity AMP Connectors FN9266A-10-06	IEC 320-C14	3	Flange Panel Mount	10 A	Filtered	EMI RFI	Commercial	0.25 in	Quick Connect	29 mm	Rectangular	33 mm	CE CQC CSA ENEC UL	IP40	Switch On-Off	Male Blades - Module Receptacle	No	UL94 V-0			Safety Version
