Description
General part information
524946-E

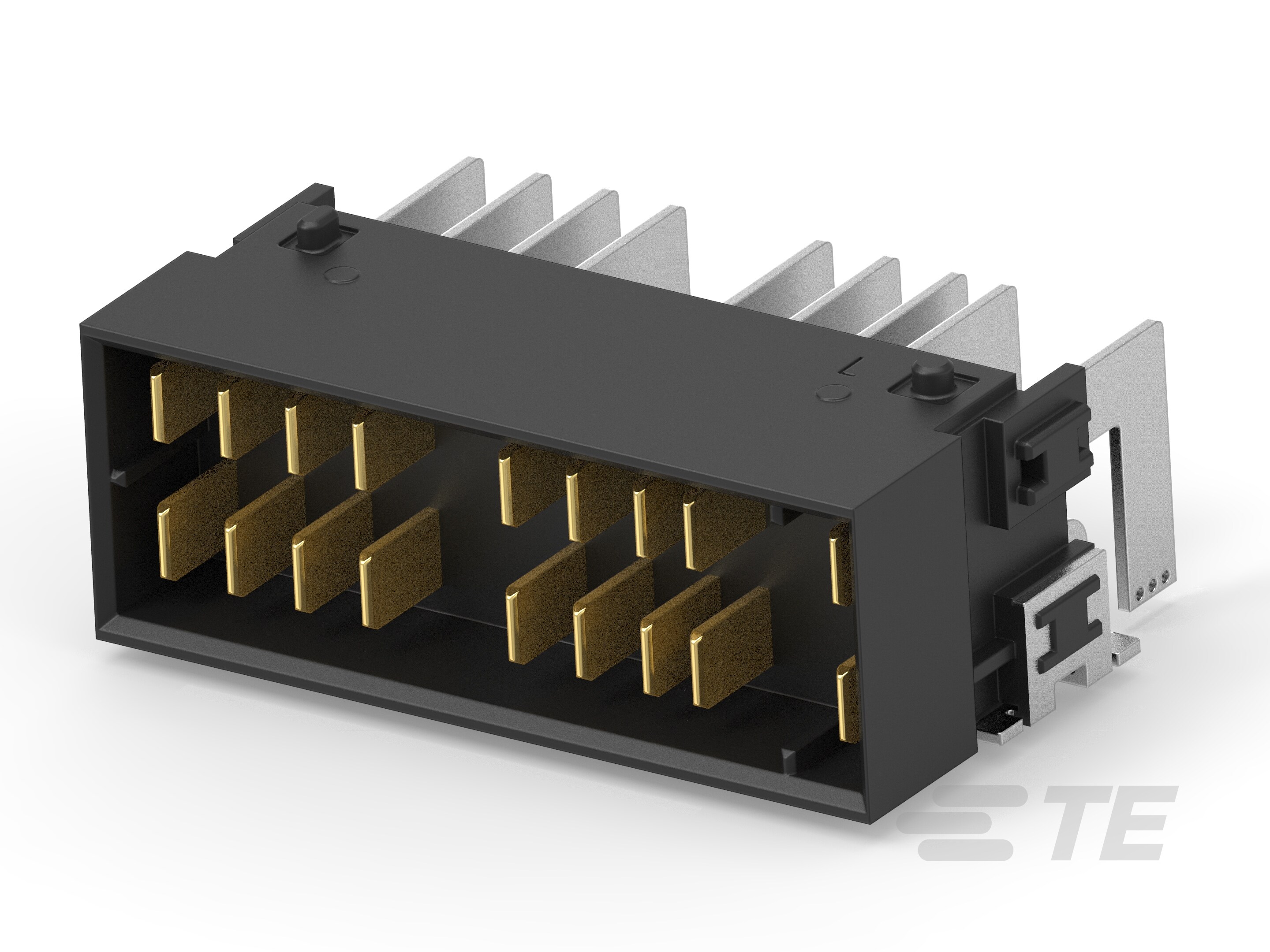

PCB Mount Plug, Right Angle, Board-to-Board, 22 Position, 2.3 mm [.09 in] Centerline, Fully Shrouded, Surface Mount, Power, Black, Package
Technical Specifications
Parameters and characteristics for this part
| Specification | 524946-E |
|---|---|
| Color | Black |
| Connector Type | Male Blades, Header |
| Connector Usage | Backplane, Orthogonal |
| Contact Finish | Gold |
| Features | Board Guide |
| Mounting Type | Right Angle, Surface Mount |
| Number of Columns | 11 |
| Number of Positions | 22 |
| Number of Positions Loaded | 18 |
| Number of Rows | 2 |
| Pitch | 0.091 in |
| Power Contacts (Typical) | 22 |
| Termination | Solder |
