2-644486-3
ActiveTE Connectivity AMP Connectors

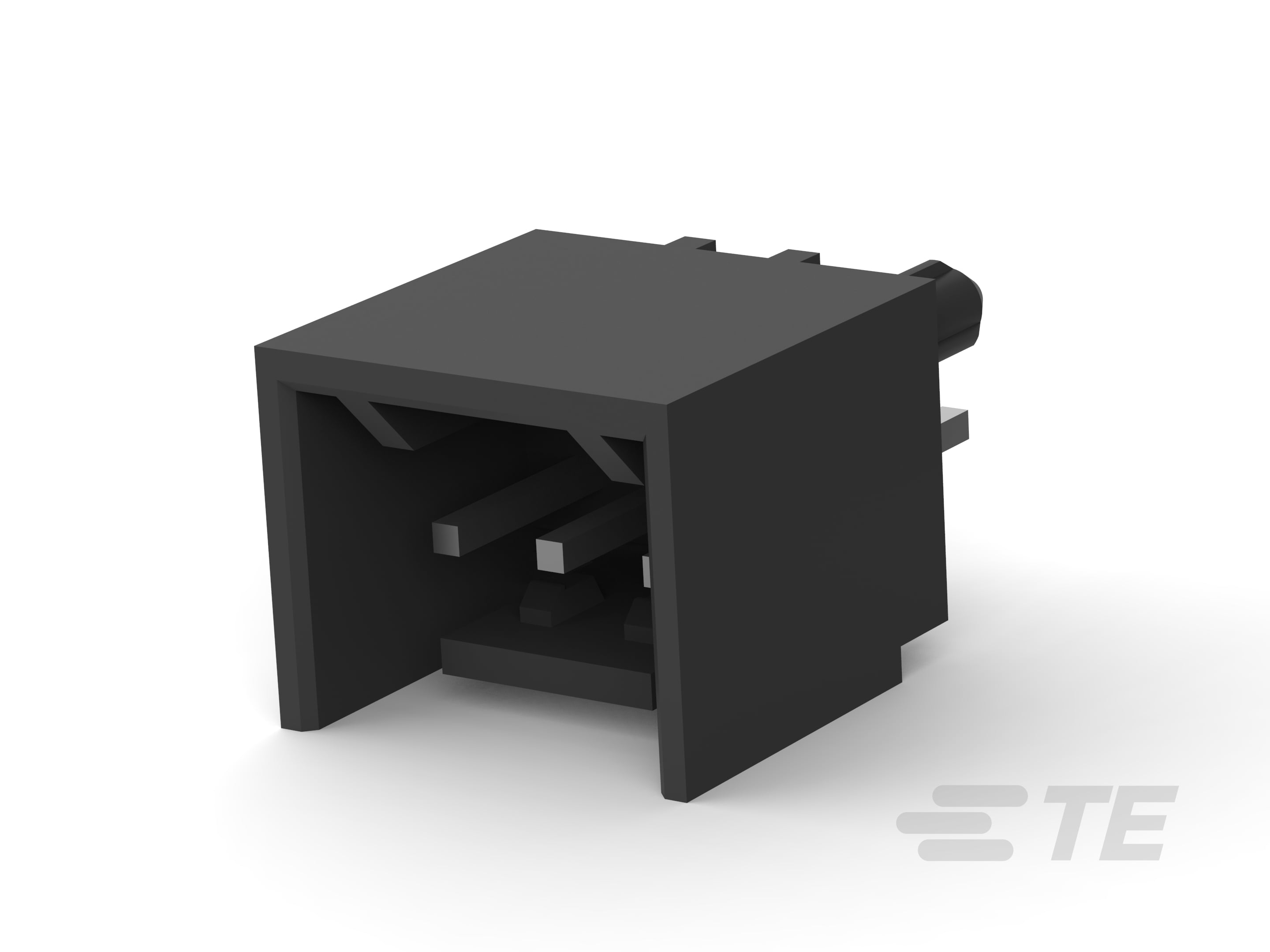

03P MTA100 SHRDED HDR ASSY SN
2-644486-3
ActiveTE Connectivity AMP Connectors
03P MTA100 SHRDED HDR ASSY SN
Description
General part information
2-644486-3
PCB Mount Header, Vertical, Wire-to-Board, 3 Position, 2.54 mm [.1 in] Centerline, Fully Shrouded, Tin (Sn), Through Hole - Solder, Signal, MTA 100
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-644486-3 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.2 in |
| Contact Length - Post | 0.14 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 0 A |
| Current Rating | Varies by Wire Gauge |
| Fastening Type | Friction Lock |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 0.41 in |
| Insulation Material | Polyester |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Contact Length | 0.44 in |
| Pitch - Mating | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 250 V |
