CP15535
ObsoleteSame Sky (Formerly CUI Devices)

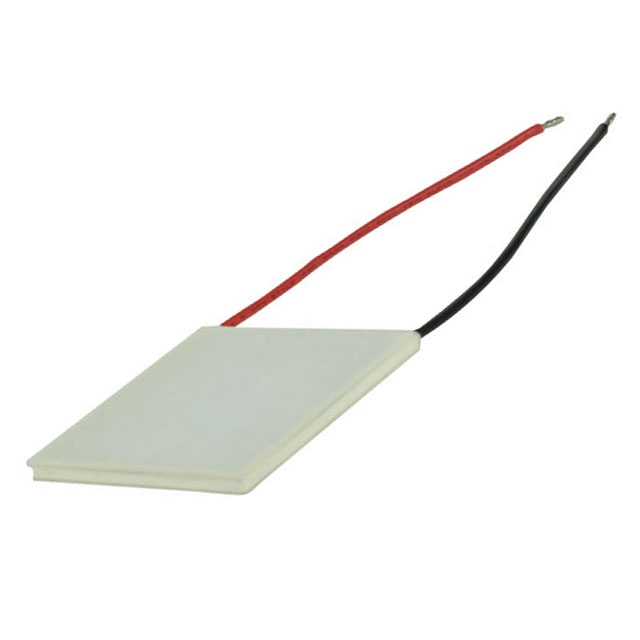

PELTIER, 50 X 50 X 3.75 MM, 15 A
CP15535
ObsoleteSame Sky (Formerly CUI Devices)
PELTIER, 50 X 50 X 3.75 MM, 15 A
Description
General part information
CP15535
Peltier Module 130.0W @ 27°C 15 A 80°C
Technical Specifications
Parameters and characteristics for this part
| Specification | CP15535 |
|---|---|
| Current - Max | 15 A |
| Delta Tmax | 68 °C |
| Features | Silicone RTV, Lead Wires, Sealed |
| Height | 3.75 mm |
| Maximum Power Dissipation (Qmax) | 130 W |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Resistance | 840 mOhms |
| Size / Dimension Length | 50 mm |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 50 mm |
| Voltage - Max | 15.4 V |
