857-604
ActiveWAGO Corporation
RELAY TIME DELAY 300MIN 6A 250V
Deep-Dive with AI
Search across all available documentation for this part.
857-604
ActiveWAGO Corporation
RELAY TIME DELAY 300MIN 6A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-604 |
|---|---|
| Contact Rating @ Voltage | 6 A, 250 VAC |
| Delay Time [Max] | 300 Min |
| Delay Time [Min] | 0.1 Sec |
| Function | Programmable (Multi-Function) |
| Mounting Type | DIN Rail |
| Relay Type | Mechanical Relay |
| Termination Style | Spring Terminal |
| Timing Adjustment Method | Screwdriver Slot |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
857-604

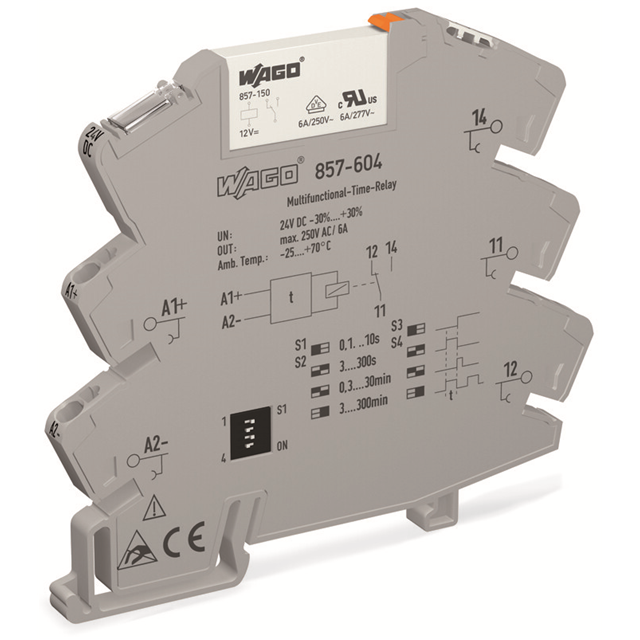

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) 0.1 Sec ~ 300 Min Delay 6A @ 250VAC DIN Rail
