Description
General part information

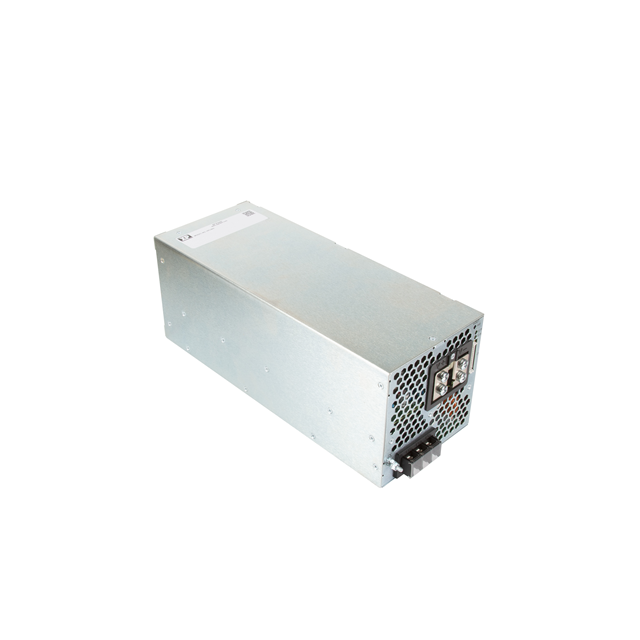

HPL5K0TS200
Enclosed AC DC Converters 1 Output 200V 180 ~ 264 VAC (3 Phase) Input
Technical Specifications
Parameters and characteristics for this part
| Specification | HPL5K0TS200 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | EN, CE, CB, UL, EKCA |
| Current - Output 1 | 25 A |
| Efficiency | 92 % |
| Features | Remote On/Off, Programmable Voltage, PFC, PMBus™, Remote Sense, I2C Interface, Standby Output |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 5 KVA |
| Size / Dimension Height | 5 in |
| Size / Dimension Length | 13 in |
| Size / Dimension Width | 5 in |
| Standard Number | 60950-1, 62368-1, 60601-1 |
| Type | Enclosed |
| Voltage - Input (3 Phase) Maximum | 264 VAC |
| Voltage - Input (3 Phase) Minimum | 180 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 200 V |
