Description
General part information

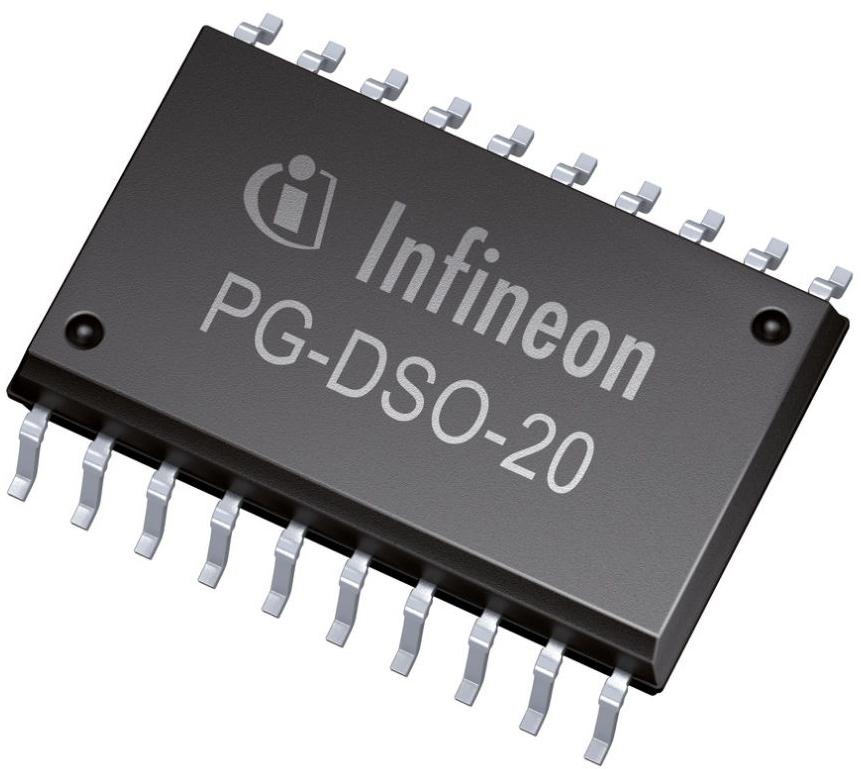

TLE4263G
LDO REGULATOR POS 5V 0.4A AUTOMOTIVE AEC-Q100 20-PIN DSO T/R
Technical Specifications
Parameters and characteristics for this part
| Specification | TLE4263G |
|---|---|
| Control Features | Watchdog, Reset |
| Current - Output | 200 mA |
| Current - Quiescent (Iq) | 50 µA |
| Current - Supply (Max) | 23 mA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package Length | 0.295 in |
| Package Name | PG-DSO-20-35, 20-SOIC |
| Package Width | 7.5 mm |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit |
| PSRR | 54 dB |
| Qualification | AEC-Q100 |
| Voltage - Input (Max) | 45 V |
| Voltage - Output (Min/Fixed) | 5 V |
| Voltage Dropout (Max) | 0.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
