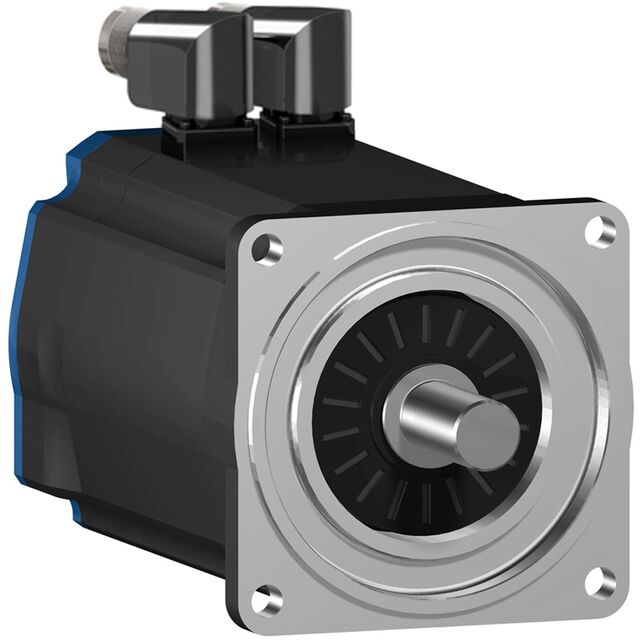

BSH1001P11A2A
ActiveSCHNEIDER ELECTRIC
MOTOR 100 IP40 KEYED INC NOBRK A
BSH1001P11A2A
ActiveSCHNEIDER ELECTRIC
MOTOR 100 IP40 KEYED INC NOBRK A
Description
General part information
BSH1001P11A2A
AC Motor Servomotor 6000 RPM 1.5kW 480VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | BSH1001P11A2A |
|---|---|
| Diameter - Shaft | 0.75 in |
| Features | Key |
| Function | Servomotor |
| Length - Shaft and Bearing | 1.57 in |
| Mounting Hole Spacing | 3.74 in |
| Power - Rated | 1.5 kVA |
| RPM | 6000 RPM |
| Size / Dimension Length | 3.937 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 3.937 in |
| Termination Style | Connector |
| Torque - Rated (mNm) | 3160 mNm |
| Torque - Rated (oz-in) | 447.5 oz-in |
| Type | AC Motor |
| Voltage - Rated | 480 VAC |
