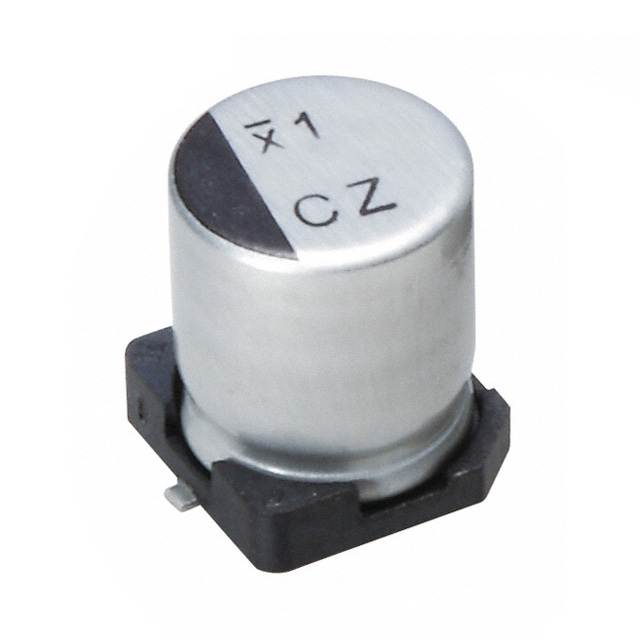

UCZ1K220MCL6GS
22 µF 80 V Aluminum Electrolytic Capacitors Radial, Can - SMD 750mOhm 3000 Hrs @ 125°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UCZ1K220MCL6GS |
|---|---|
| Applications | General Purpose |
| Capacitance | 22 µF |
| ESR (Equivalent Series Resistance) | 750 mOhm |
| Height - Seated (Max) | 0.413 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current | 35 mA |
| Size / Dimension Diameter | 0.315 in |
| Surface Mount Land Length | 0.327 in |
| Surface Mount Land Width | 0.327 in |
| Tolerance | 20 % |
| Voltage - Rated | 80 Vp-p |
