Description
General part information

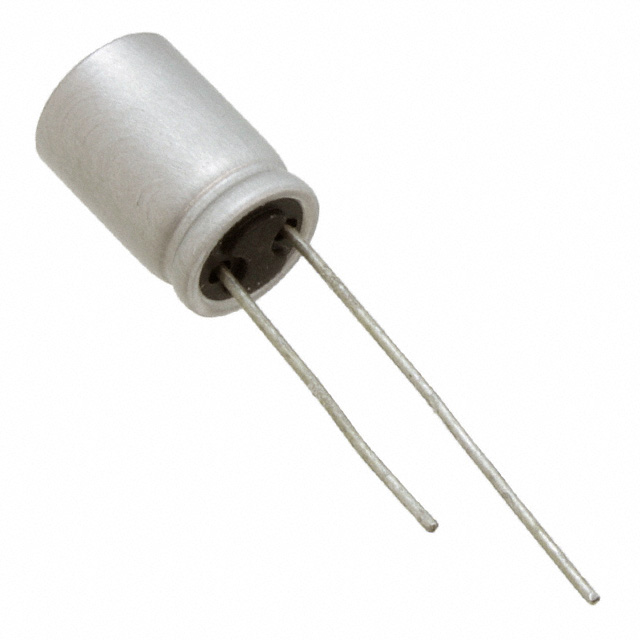

PLX1E121MDL1
120 µF 25 V Aluminum - Polymer Capacitors Radial, Can 27mOhm 3000 Hrs @ 125°C
Technical Specifications
Parameters and characteristics for this part
| Specification | PLX1E121MDL1 |
|---|---|
| Applications | General Purpose |
| Capacitance | 120 µF |
| ESR (Equivalent Series Resistance) | 27 mOhm |
| Height - Seated (Max) | 0.472 in |
| Lead Spacing | 0.138 in |
| Lifetime | 3000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Ratings | AEC-Q200 |
| Ripple Current | 2.3 A |
| Size / Dimension Diameter | 0.315 in |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 25 VAC |
