744C083332JP

Obsolete

Tusonix a Subsidiary of CTS Electronic Components

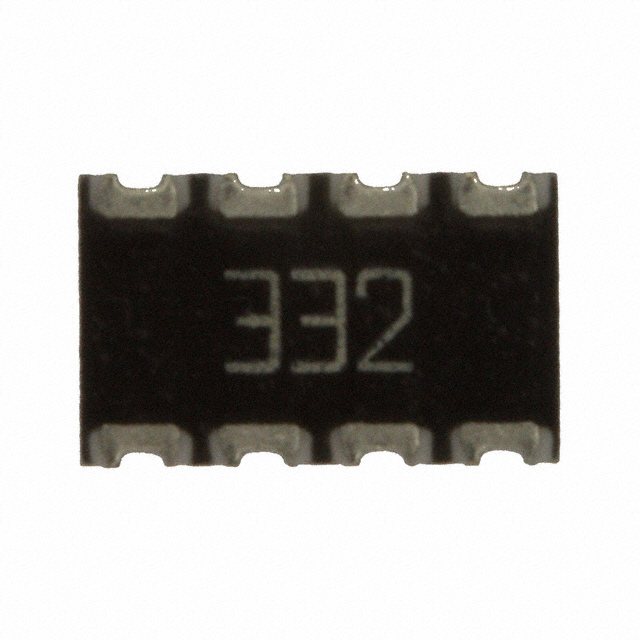

RES ARRAY 4 RES 3.3K OHM 2012

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

744C083332JP

Obsolete

Tusonix a Subsidiary of CTS Electronic Components

RES ARRAY 4 RES 3.3K OHM 2012

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	744C083332JP

Circuit Type	Isolated
Height - Seated (Max) [Max]	0.7 mm
Height - Seated (Max) [Max]	0.028 in
Mounting Type	Surface Mount
Number of Pins	8
Number of Resistors	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	2012, Long Side Terminals, Concave
Power Per Element	125 mW
Resistance (Ohms)	3.3 kOhms
Size / Dimension [x]	5.08 mm
Size / Dimension [y]	0.126 in, 3.2 mm
Temperature Coefficient	200 ppm/°C
Tolerance	5 %

744C083 Series

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Number of Resistors	Package / Case	Temperature Coefficient	Mounting Type	Power Per Element	Circuit Type	Size / Dimension [y]	Size / Dimension [x]	Number of Pins	Resistance (Ohms)	Operating Temperature [Min]	Operating Temperature [Max]	Resistance (Ohms)
Tusonix a Subsidiary of CTS Electronic Components 744C083151JP	0.7 mm	0.028 in	5 %	4	2012 Concave Long Side Terminals	200 ppm/°C	Surface Mount	125 mW	Isolated	0.126 in 3.2 mm	5.08 mm	8	150 Ohms	-55 °C	125 °C
Tusonix a Subsidiary of CTS Electronic Components 744C083121JP	0.7 mm	0.028 in	5 %	4	2012 Concave Long Side Terminals	200 ppm/°C	Surface Mount	125 mW	Isolated	0.126 in 3.2 mm	5.08 mm	8	120 Ohms	-55 °C	125 °C
Tusonix a Subsidiary of CTS Electronic Components 744C083473JP	0.7 mm	0.028 in	5 %	4	2012 Concave Long Side Terminals	200 ppm/°C	Surface Mount	125 mW	Isolated	0.126 in 3.2 mm	5.08 mm	8		-55 °C	125 °C	47k
Tusonix a Subsidiary of CTS Electronic Components 744C083331JTR	0.7 mm	0.028 in	5 %	4	2012 Concave Long Side Terminals	200 ppm/°C	Surface Mount	125 mW	Isolated	0.126 in 3.2 mm	5.08 mm	8	330 Ohms	-55 °C	125 °C
Tusonix a Subsidiary of CTS Electronic Components 744C083153JP	0.7 mm	0.028 in	5 %	4	2012 Concave Long Side Terminals	200 ppm/°C	Surface Mount	125 mW	Isolated	0.126 in 3.2 mm	5.08 mm	8		-55 °C	125 °C	15k
Tusonix a Subsidiary of CTS Electronic Components 744C083104JP	0.7 mm	0.028 in	5 %	4	2012 Concave Long Side Terminals	200 ppm/°C	Surface Mount	125 mW	Isolated	0.126 in 3.2 mm	5.08 mm	8	100 kOhms	-55 °C	125 °C
Tusonix a Subsidiary of CTS Electronic Components 744C083682JP	0.7 mm	0.028 in	5 %	4	2012 Concave Long Side Terminals	200 ppm/°C	Surface Mount	125 mW	Isolated	0.126 in 3.2 mm	5.08 mm	8	6.8 Ohms	-55 °C	125 °C
Tusonix a Subsidiary of CTS Electronic Components 744C083274JP	0.7 mm	0.028 in	5 %	4	2012 Concave Long Side Terminals	200 ppm/°C	Surface Mount	125 mW	Isolated	0.126 in 3.2 mm	5.08 mm	8	270 kOhms	-55 °C	125 °C
Tusonix a Subsidiary of CTS Electronic Components 744C083152JP	0.7 mm	0.028 in	5 %	4	2012 Concave Long Side Terminals	200 ppm/°C	Surface Mount	125 mW	Isolated	0.126 in 3.2 mm	5.08 mm	8	1.5 kOhms	-55 °C	125 °C
Tusonix a Subsidiary of CTS Electronic Components 744C083101JTR	0.7 mm	0.028 in	5 %	4	2012 Concave Long Side Terminals	200 ppm/°C	Surface Mount	125 mW	Isolated	0.126 in 3.2 mm	5.08 mm	8	100 Ohms	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

744C083 Series

3.3k Ohm ±5% 125mW Power Per Element Isolated 4 Resistor Network/Array ±200ppm/°C 2012, Concave, Long Side Terminals
