0514002.MXEP

Active

LITTELFUSE

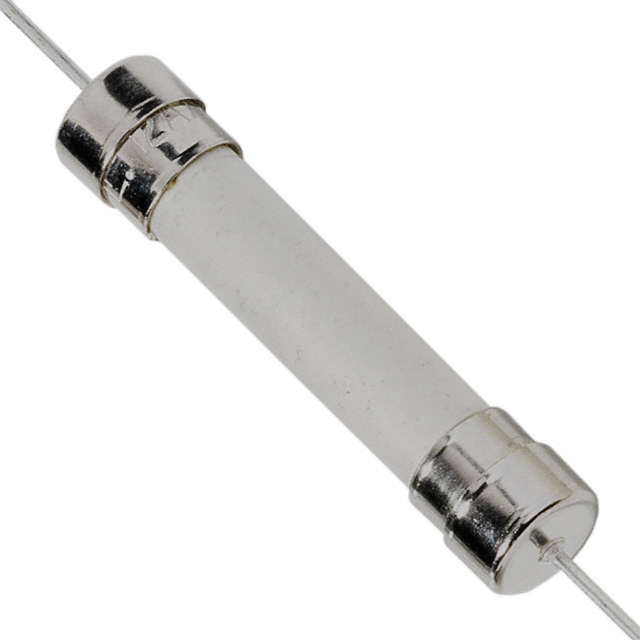

FUSE CERAMIC 2A 500VAC 3AB 3AG

Search across all available documentation for this part.

Active

LITTELFUSE

FUSE CERAMIC 2A 500VAC 3AB 3AG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0514002.MXEP	0514002 Series

Approval Agency	CE, cURus	CE, cURus
Breaking Capacity @ Rated Voltage	5 kA	5 kA
Current Rating (Amps)	2 A	2 A
DC Cold Resistance	150 mOhms	150 mOhms
Fuse Type	Cartridge, Ceramic	Cartridge, Ceramic
Melting I²t	4.12	4.12
Mounting Type	Through Hole	Requires Holder, Through Hole
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	3AG, 3AB	3AB, 3AG
Package / Case [x]	1/4	1/4
Package / Case [y]	1-1/4	1-1/4
Response Time	Fast Blow	Fast Blow
Size / Dimension	32.72 mm, 6.99 mm	6.99 - 32.72 mm
Size / Dimension	-	31.75 mm
Size / Dimension	-	6.35 mm
Size / Dimension [diameter]	0.275 "	0.25 - 0.275 in
Size / Dimension [x]	1.288 "	1.25 - 1.288 "
Voltage Rating - AC	500 V	500 V

FUSE, CARTRIDGE, FAST ACTING, 2 A, 500 V, 6.3MM X 32MM, 1/4" X 1-1/4", 514 SERIES

Part	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Fuse Type	Breaking Capacity @ Rated Voltage	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Approval Agency	Mounting Type	Melting I²t	Voltage Rating - AC	Package / Case	Package / Case [y]	Package / Case [x]	DC Cold Resistance	Size / Dimension
LITTELFUSE 0514002.MXP	31.75 mm	0.25 in	6.35 mm	1.25 "	Cartridge, Ceramic	5 kA	Fast Blow	-55 °C	125 °C	2 A	CE, cURus	Requires Holder	4.12	500 V	3AB, 3AG	1-1/4	1/4	150 mOhms
LITTELFUSE 0514002.MXEP		0.275 "		1.288 "	Cartridge, Ceramic	5 kA	Fast Blow	-55 °C	125 °C	2 A	CE, cURus	Through Hole	4.12	500 V	3AB, 3AG	1-1/4	1/4	150 mOhms	6.99 mm, 32.72 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 2.60

General part information

2 A 500 V AC DC Fuse Cartridge, Ceramic Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
