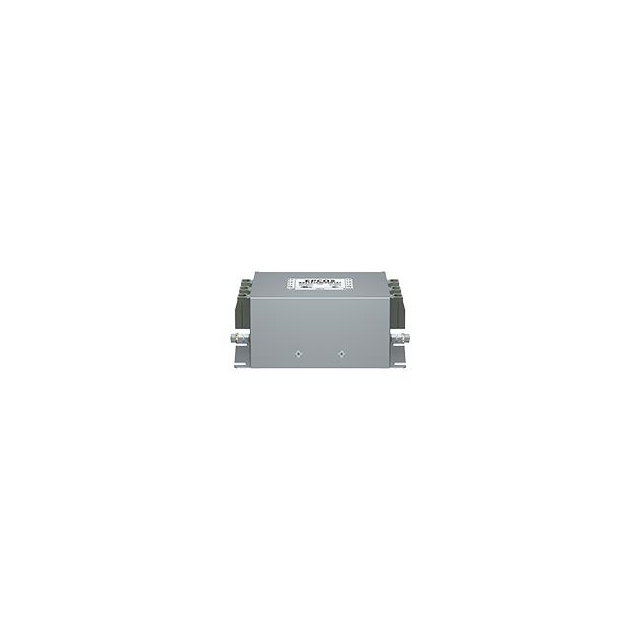

B84143A0010R107
ActiveEPCOS - TDK Electronics
LINE FILTER 520V/300VAC 10A CHAS
B84143A0010R107
ActiveEPCOS - TDK Electronics
LINE FILTER 520V/300VAC 10A CHAS
Description
General part information
B84143A0010R107
Three Phase (Delta) EMC/EMI Line Filter 10 A 520V, 300V 50/60Hz Single Stage Terminal Block
Technical Specifications
Parameters and characteristics for this part
| Specification | B84143A0010R107 |
|---|---|
| Applications | General Purpose |
| Approval Agency | cUR, UR, ENEC |
| Configuration | Single Stage |
| Current | 10 A |
| Filter Subtype | Delta |
| Filter Type | Three Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC | 520V, 300V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
