Description

General part information

2410329-2

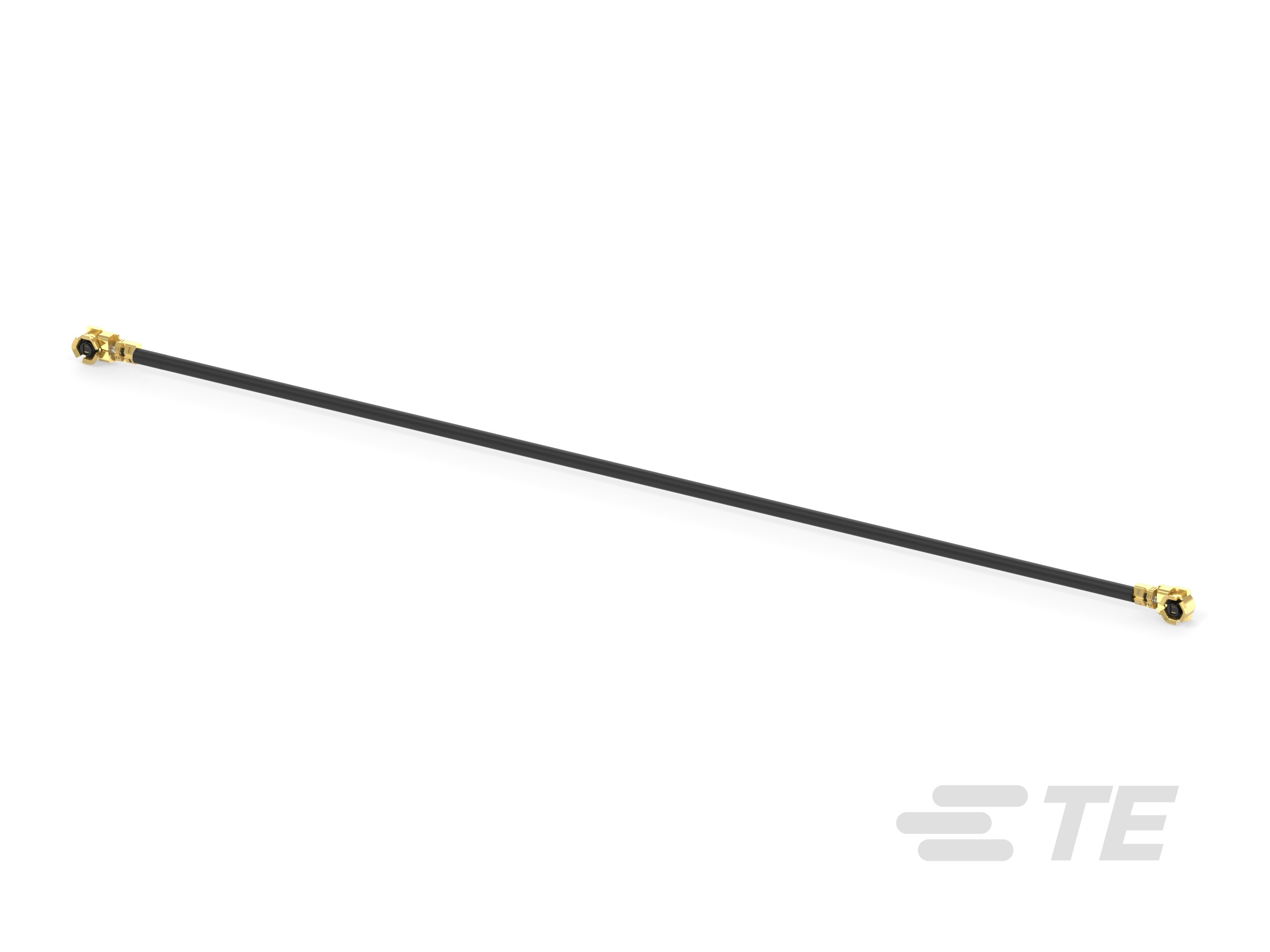

UMCC Cable Assembly, .1 m [.328 ft], Black Cable, 0 – 9 GHz, 50 ohm, FEP Jacket, 32 AWG, 1.37 mm [.054 in] Diameter, UMCC GEN 1 Plug End A

Technical Specifications

Parameters and characteristics for this part

Specification2410329-2
1st ConnectorRight Angle, I-PEX MHF1 Plug, U.FL (UMCC)
1st Connector Mounting TypeFree Hanging (In-Line)
1st Contact GenderFemale
2nd ConnectorRight Angle, U.FL (UMCC), I-PEX MHF1 Plug
2nd Connector Mounting TypeFree Hanging (In-Line)
2nd Contact GenderFemale
Cable Outer Diameter1.37 mm
Cable TypeCoaxial Cable, OD Coaxial Cable
Cable Type Size1.37
ColorBlack
Frequency - Max9 GHz
Length3.937 in
Operating Temperature (Max)80 °C
Operating Temperature (Min)-40 °C
Overall Impedance50 Ohms
StyleU.FL (UMCC), I-PEX MHF1, I-PEX MHF1 to U.FL (UMCC)
