X9001558-3GDSMB

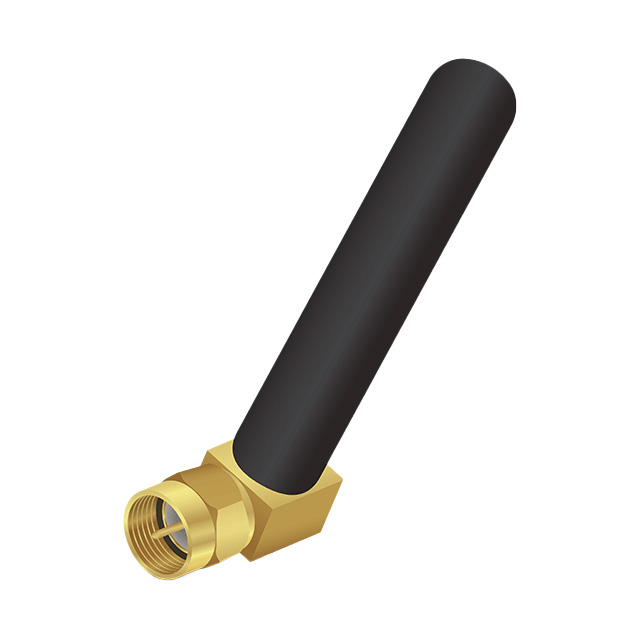

RF ANTENNA 2G, 3G, ISM, LoRa Whip, Right Angle SMA Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | X9001558-3GDSMB |
|---|---|
| Antenna Type | Right Angle, Whip |
| Applications | 3G, LoRa, ISM, 2G |
| Frequency (Band) | 1.94 GHz |
| Frequency (Center) | 892 MHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 824 MHz |
| Frequency Range (Band 2) Maximum | 2.17 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Gain | 1.2 dBi, 0.5 dBi |
| Height (Max) | 1.85 in |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| RF Family/Standard | Cellular, General ISM |
| Termination Type | SMA Male |
| VSWR | 4.9, 7.2 |
| VSWR Maximum | 7.2 |
| VSWR Minimum | 4.9 |
