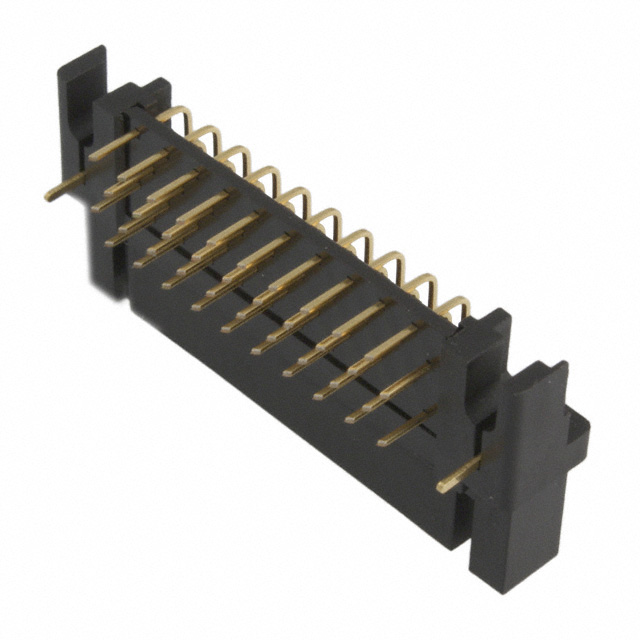

Specification	P50-040SG-SR1-EA

Connector Type	Outer Shroud Contacts, Socket
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Features	Ground Pin
Height Above Board	0.275 in
Mounting Type	Through Hole, Right Angle
Number of Positions	40
Number of Rows	2
Pitch	0.05 in

P50 Series

Part	Number of Rows	Height Above Board	Pitch	Features	Contact Finish Thickness	Connector Type	Contact Finish	Number of Positions	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Current Rating	Material Flammability Rating	Contact Length - Post	Fastening Type	Termination	Contact Material	Number of Positions Loaded	Shrouding	Insulation Height	Contact Finish - Mating	Insulation Material	Insulation Color	Contact Finish - Post	Pitch - Mating	Contact Type	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)
3M Electronic Specialty P50-030S-RR1-TG	2	0.275 in	0.05 in	Board Lock Flange	10 Ąin	Outer Shroud Contacts Socket	Gold	30	Right Angle Through Hole
3M Electronic Specialty P50-040S-R1-EA	2	0.421 in	0.05 in	Board Lock Flange	10 Ąin	Outer Shroud Contacts Socket	Gold	40	Through Hole
3M Electronic Specialty P50-068S-R1-EA	2	0.421 in	0.05 in	Board Lock Flange	10 Ąin	Outer Shroud Contacts Socket	Gold	68	Through Hole
3M Electronic Specialty P50-030PG-S1-TGF	2	0.461 in	0.05 in	Ground Pin	2 µin	Center Strip Contacts Plug	Gold	30	Through Hole
3M Electronic Specialty P50-080S-RR1-EA	2	0.275 in	0.05 in	Board Lock Flange	10 Ąin	Outer Shroud Contacts Socket	Gold	80	Right Angle Through Hole
3M Electronic Specialty P50-020SG-SR1-EA	2	0.275 in	0.05 in	Ground Pin	10 Ąin	Outer Shroud Contacts Socket	Gold	20	Right Angle Through Hole
3M Electronic Specialty P50-020PG-S1-EA	2	0.461 in	0.05 in	Ground Pin	10 Ąin	Center Strip Contacts Plug	Gold	20	Through Hole
3M Electronic Specialty P50-100S-R1-EA	2	0.421 in	0.05 in	Board Lock Flange	10 Ąin	Outer Shroud Contacts Socket	Gold	100	Through Hole
3M Electronic Specialty P50-030P1-RR1-EA	2			Board Lock		Plug		30	Right Angle Through Hole	-55 °C	85 °C	0.5 A	UL94 V-0	0.118 in	Latch Holder	Solder	Phosphor Bronze	All	Shrouded - 4 Wall	0.276 in	Gold	Glass Filled Nylon Polyamide (PA)	Black	Gold	0.05 in	Center Strip Contact	Board Board or Cable	10 µin	Flash	Flash
3M Electronic Specialty P50-050P-RR1-EA	2	0.275 in	0.05 in	Board Lock Flange	10 Ąin	Center Strip Contacts Plug	Gold	50	Right Angle Through Hole
