SJS704111
ActiveMcGill Microwave Systems
4 POSITION, SIZE 20 INLINE PLUG
SJS704111
ActiveMcGill Microwave Systems
4 POSITION, SIZE 20 INLINE PLUG
Description
General part information
SJS704111

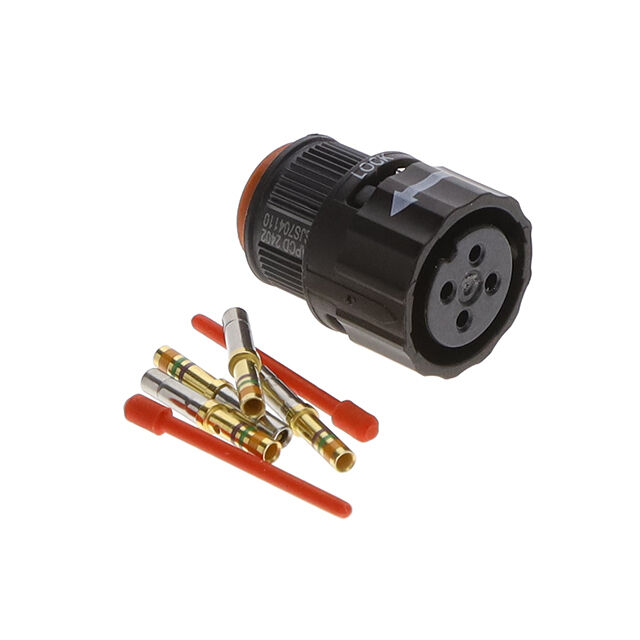

4 Position Circular Connector Plug, Female Sockets Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | SJS704111 |
|---|---|
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Fastening Type | Bayonet Lock |
| Insert Material | Polyetherimide, PEI |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyetherimide (PEI) |
| Shell Size - Insert | 7 |
| Shell Size - Insert | 7 |
| Shielding | Unshielded |
| Termination | Crimp |
