Description
General part information

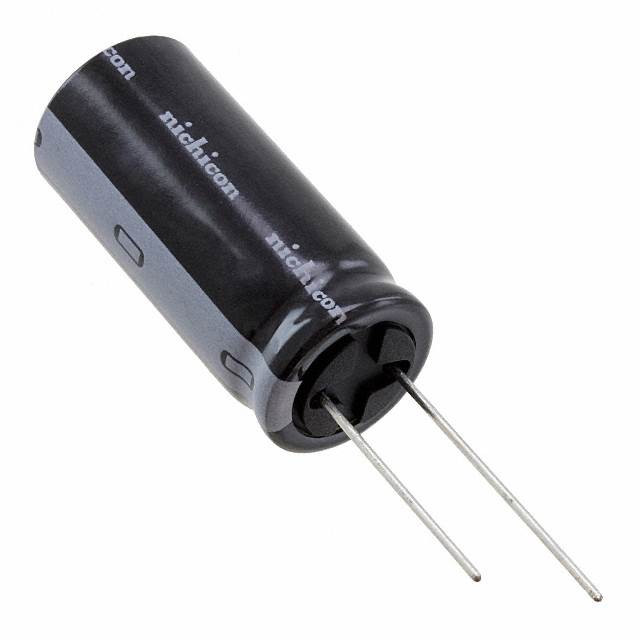

UKL1C332KHD
3300 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UKL1C332KHD |
|---|---|
| Applications | General Purpose |
| Capacitance | 3300 µF |
| Height - Seated (Max) | 1.457 in |
| Lead Spacing | 0.295 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 1.7825 A, 1.55 A |
| Size / Dimension Diameter | 0.63 in |
| Tolerance | 10 % |
| Voltage - Rated | 16 V |
