41589
ActiveTE Connectivity AMP Connectors

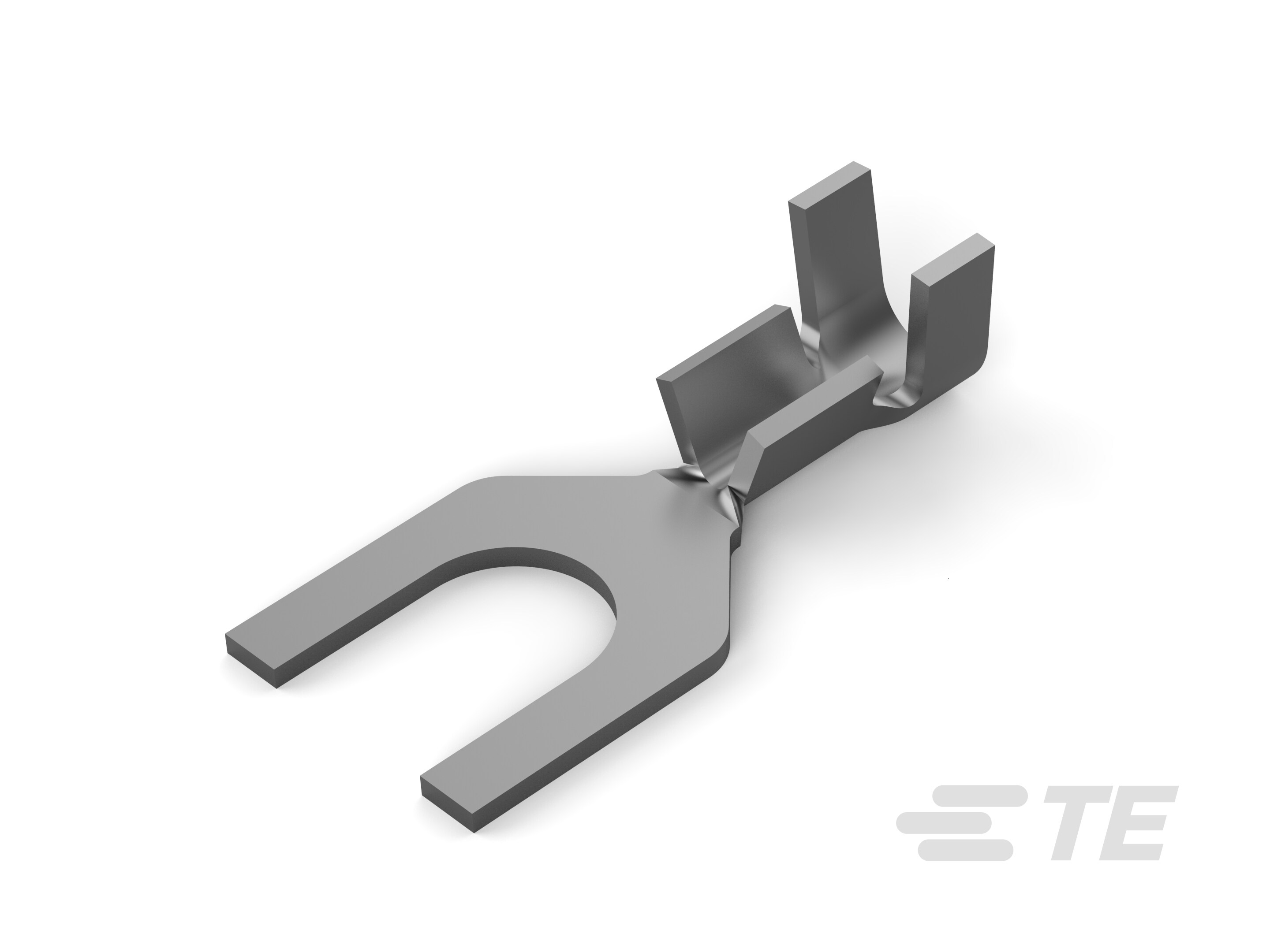

SPADE TERMINAL 24-20 AWG TPBR
41589
ActiveTE Connectivity AMP Connectors
SPADE TERMINAL 24-20 AWG TPBR
Description
General part information
41589
Spade Tongue Terminal, 24 – 20 AWG, #8 / M4 Stud, 4.34 mm [.171 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 41589 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Insulation | Non-Insulated |
| Length - Overall | 0.621 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Standard |
| Termination | Crimp |
| Width - Outer Edges | 0.29 in |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
