Description

General part information

PAV69278PO-30D43F

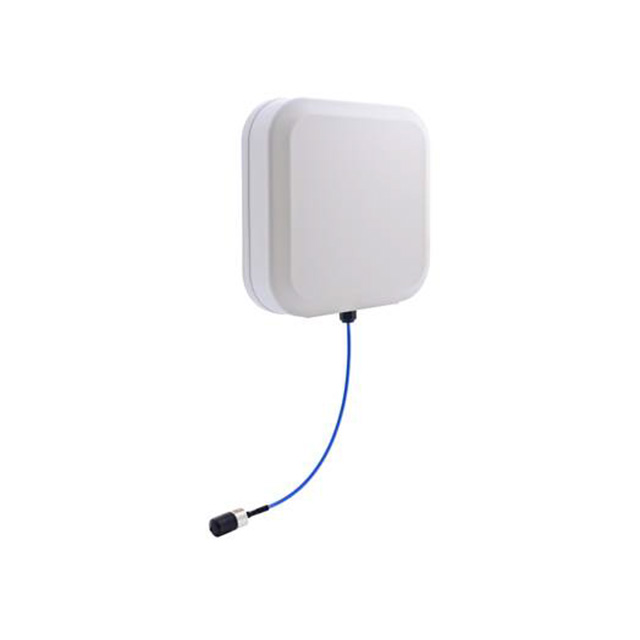

Panel Antenna, Multi Band, ISM / LoRaWAN, External Mount, Wall/Ceiling Mount, 4.3-10, Directional, Single Port, > 6 dBi Peak Gain

Technical Specifications

Parameters and characteristics for this part

SpecificationPAV69278PO-30D43F
Antenna TypePanel
ApplicationsGSM, LTE, UMTS, PCS, AWS
FeaturesCable, 300mm
Frequency (Center/Band)2.1GHz, 2.4GHz, 900MHz, 850MHz, 1.8GHz, 1.9GHz, 2.6GHz, 700MHz
Frequency (Center/Band) - 1700 MHz
Frequency (Center/Band) - 2850 MHz
Frequency (Center/Band) - 3900 MHz
Frequency (Center/Band) - 41.8 GHz
Frequency (Center/Band) - 51.9 GHz
Frequency (Center/Band) - 62.1 GHz
Frequency (Center/Band) - 72.4 GHz
Frequency (Center/Band) - 82.6 GHz
Frequency GroupWide Band
Frequency Range (Band 1) Maximum960 MHz
Frequency Range (Band 1) Minimum698 MHz
Frequency Range (Band 2) Maximum2.7 GHz
Frequency Range (Band 2) Minimum1.7 GHz
Gain7.8 dBi, 8.7 dBi, 8.8 dBi, 7.6 dBi
Height (Max)2.413 in
Ingress ProtectionIP67
Mounting TypeBracket Mount
Number of Bands8
Power - Max50 VA
RF Family/StandardCellular
Termination GenderFemale
Termination Pin Count10 pins
Termination Pitch4.3 mm
VSWR1.7, 1.9, 1.8, 1.5
