881606-4
ActiveTE Connectivity AMP Connectors
TERMINALS FASTIN-ON .375 REC
881606-4
ActiveTE Connectivity AMP Connectors
TERMINALS FASTIN-ON .375 REC
Description
General part information
FASTIN-FASTON 375 Series

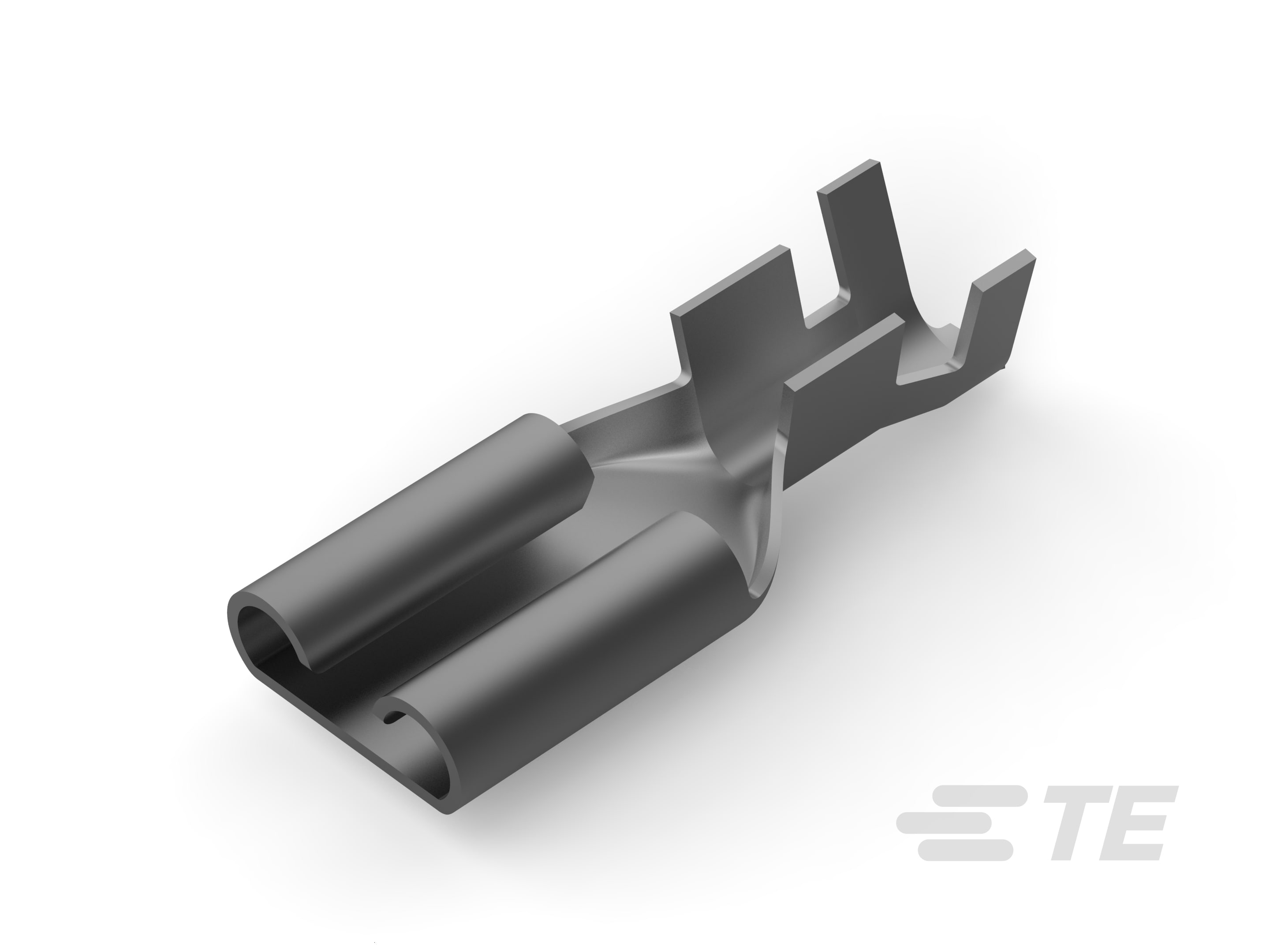

Quick Disconnect Receptacle, 11 – 10 AWG, 4 – 5.2 mm² Wire, 9.53 mm [.375 in] Tab Width, Straight, Phosphor Bronze, Tin Plating, FASTIN-FASTON 375
Technical Specifications
Parameters and characteristics for this part
| Specification | 881606-4 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Gender | Female |
| Insulation | Non-Insulated |
| Length - Overall | 1.039 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.469 in |
| Tab Thickness | 0.04 in |
| Tab Width | 0.375 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
