XX930A3A2M12
ObsoleteSCHNEIDER ELECTRIC
ULTRASONIC SENSOR, 24VDC, 4-20MA +OPTION
XX930A3A2M12
ObsoleteSCHNEIDER ELECTRIC
ULTRASONIC SENSOR, 24VDC, 4-20MA +OPTION
Description
General part information
XX930A3A2M12

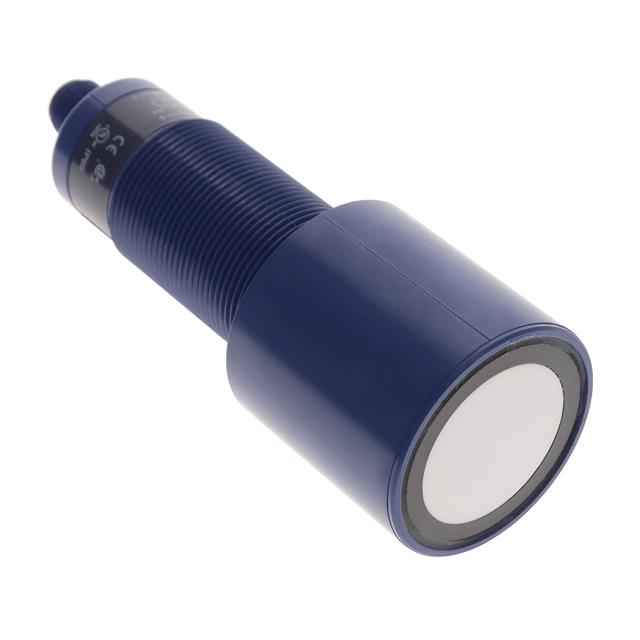

Ultrasonic Proximity Sensor 11.811" ~ 314.961" (300mm ~ 8000mm) IP67 Cylinder, Threaded - M30
Technical Specifications
Parameters and characteristics for this part
| Specification | XX930A3A2M12 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Plastic |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | Analog Current |
| Package / Case | Cylinder, Threaded - M30 |
| Sensing Distance Maximum | 314.961 " |
| Sensing Distance Minimum | 11.811 " |
| Sensor Type | Ultrasonic |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 15 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
