LMXN0605M330DTAS
ObsoleteKYOCERA AVX
FIXED IND 33UH 880MA 230MOHM SMD
LMXN0605M330DTAS
ObsoleteKYOCERA AVX
FIXED IND 33UH 880MA 230MOHM SMD
Description
General part information
LMXN0605M330DTAS

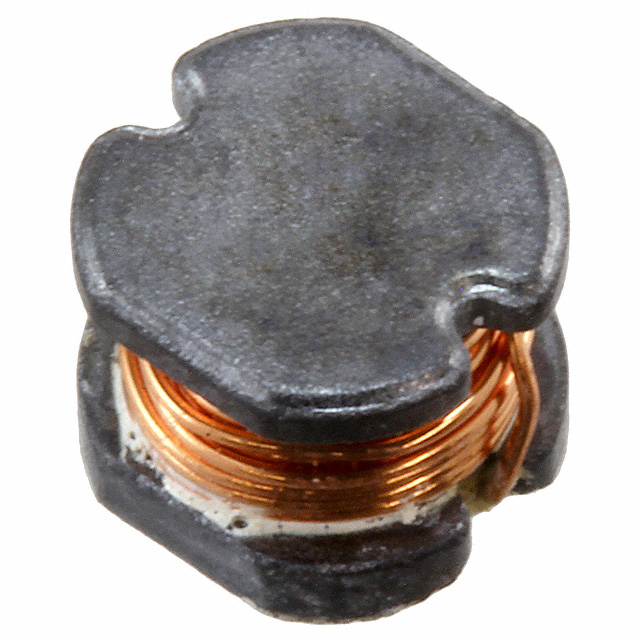

33 µH Unshielded Drum Core, Wirewound Inductor 880 mA 230mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | LMXN0605M330DTAS |
|---|---|
| Current Rating | 880 mA |
| DC Resistance (DCR) (Max) | 230 mOhm |
| Height - Seated (Max) | 0.191 in |
| Inductance | 33 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.228 in |
| Size / Dimension Width | 0.205 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
