2234126-1
ActiveTE Connectivity AMP Connectors
PUNCHES & DIES DIE SET HVA280-2P F
2234126-1
ActiveTE Connectivity AMP Connectors
PUNCHES & DIES DIE SET HVA280-2P F
Description
General part information
HVA 280 Series

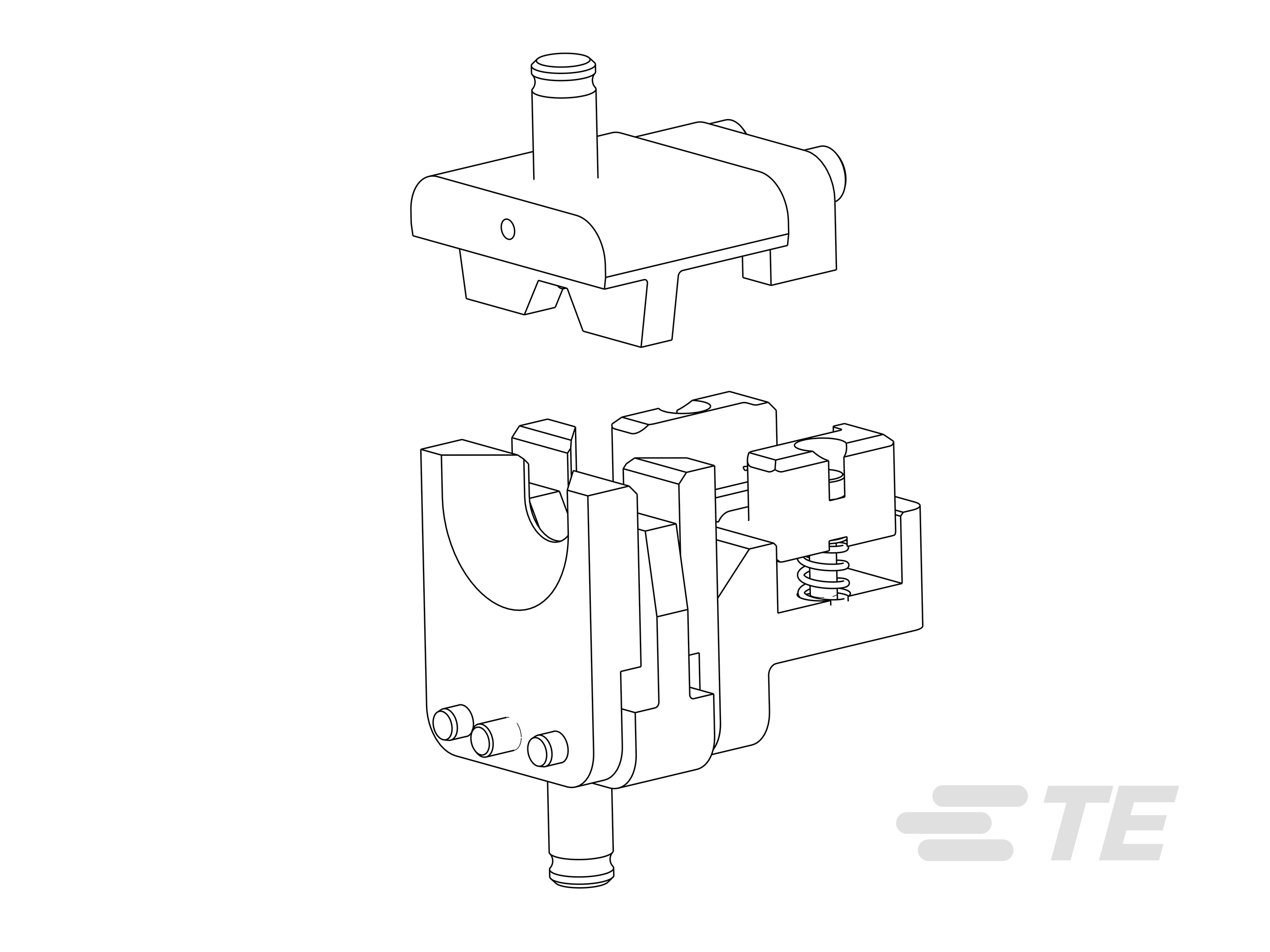

DIE SET2 HVA280-2P F
Technical Specifications
Parameters and characteristics for this part
| Specification | 2234126-1 |
|---|---|
| For Use With/Related Products | Modular Plugs |
| Tool Type | Die Set |
