C&P50F
ActivePasternack
CONNECTOR DB50F CRIMP
C&P50F
ActivePasternack
CONNECTOR DB50F CRIMP
Description
General part information
C&P50F

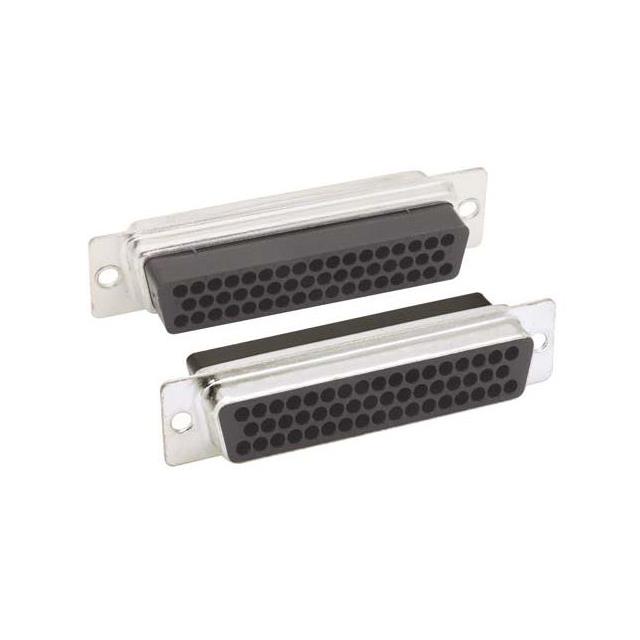

Receptacle for Female Contacts Housing D-Sub Connector 50 Position
Technical Specifications
Parameters and characteristics for this part
| Specification | C&P50F |
|---|---|
| Color | Black |
| Connector Layout | D, DD |
| Connector Style | D-Sub |
| Connector Type | Receptacle for Female Contacts |
| Contact Type | Signal |
| Dielectric Material | Glass Filled, Polybutylene Terephthalate (PBT) |
| Finish | Tin-Nickel Plated |
| Flange Feature | Shell (Unthreaded), Housing |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 50 |
| Number of Rows | 3 |
| Primary Material | Metal |
| Shell Material | Steel |
| Shell Size | 5 |
