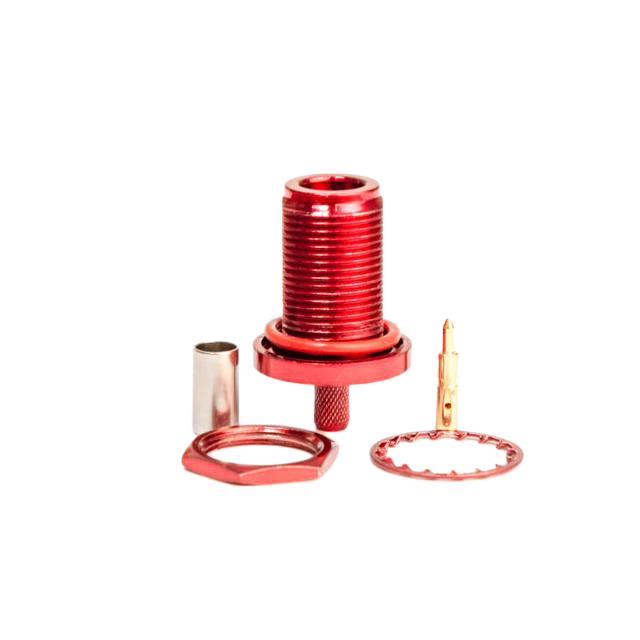

BC-222-195-RD

Active

Big Cat Cables

N TYPE REVERSE POLARITY FEMALE R

Search across all available documentation for this part.

Active

Big Cat Cables

N TYPE REVERSE POLARITY FEMALE R

Technical Specifications

Parameters and characteristics for this part

Specification	BC-222-195-RD

Body Material	Brass
Cable Group	LMR-195
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-N Type
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Red
Impedance	50 Ohms
Ingress Protection	Waterproof
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1000 VDC

N TYPE REVERSE POLARITY FEMALE R

Part	Shield Termination	Body Material	Number of Ports	Mating Cycles	Cable Group	Connector Style	Frequency - Max [Max]	Connector Type	Ingress Protection	Contact Termination	Dielectric Material	Voltage Rating	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Housing Color	Center Contact Material	Center Contact Plating
Big Cat Cables BC-222-195-RD	Crimp	Brass	1	500	LMR-195	RP-N Type	6000 MHz	Jack, Male Pin	Waterproof	Crimp	Polytetrafluoroethylene (PTFE)	1000 VDC	Bulkhead - Front Side Nut	-65 ░C	165 °C	50 Ohms	Red	Brass	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-N Type Connector Jack, Male Pin 50 Ohms Panel Mount Crimp
