Description
General part information

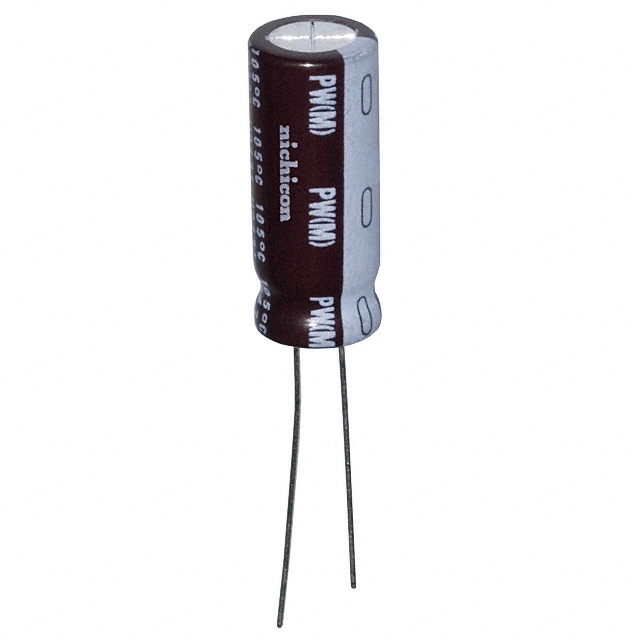

UPW1J221MPH6
220 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UPW1J221MPH6 |
|---|---|
| Applications | General Purpose |
| Capacitance | 220 µF |
| Height - Seated (Max) | 0.984 in |
| Impedance | 130 mOhms |
| Lead Spacing | 0.197 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 682.5 mA, 1.05 A |
| Size / Dimension Diameter | 0.394 in |
| Tolerance | 20 % |
| Voltage - Rated | 63 V |
