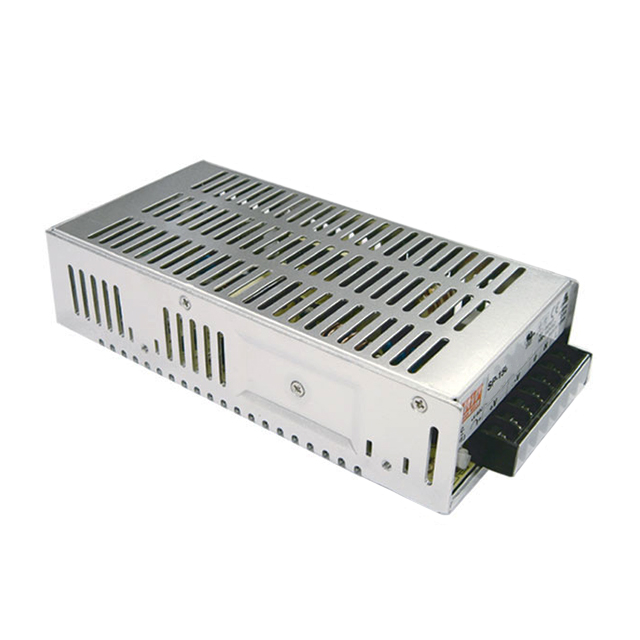

SP-150-24
ObsoleteMEAN WELL USA Inc.
AC/DC CONVERTER 24V 151W
SP-150-24
ObsoleteMEAN WELL USA Inc.
AC/DC CONVERTER 24V 151W
Description
General part information
SP-150-24
Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | SP-150-24 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CB, TUV, CE |
| Current - Output 1 | 6.3 A |
| Efficiency | 85 % |
| Features | PFC, Adjustable Output, Universal Input |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 151 W |
| Size / Dimension Height | 1.97 in |
| Size / Dimension Length | 7.83 in |
| Size / Dimension Width | 3.9 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 370 V |
| Voltage - Input (DC) Minimum | 120 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 24 V |
