3050334
ActiveSAB North America

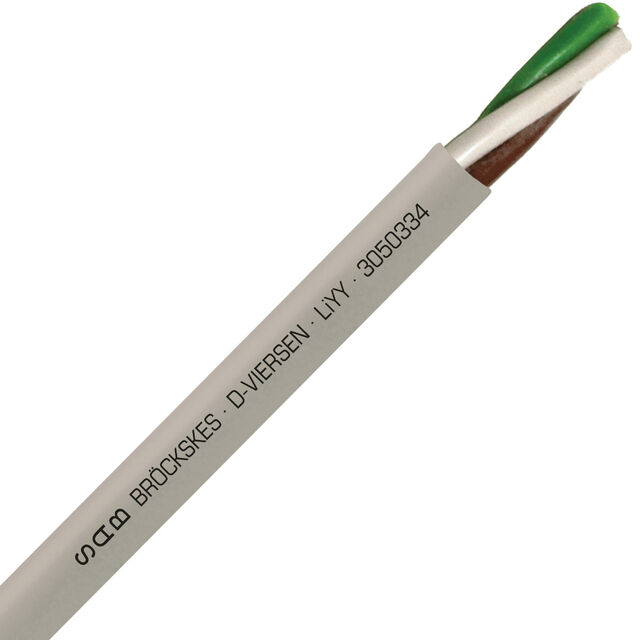

CABLE 3COND 22 AWG GRAY 1=1FT
3050334
ActiveSAB North America
CABLE 3COND 22 AWG GRAY 1=1FT
Description
General part information
3050334
3 Conductor Multi-Conductor Cable Gray 22 AWG Enter Number of Feet in Order Quantity
Technical Specifications
Parameters and characteristics for this part
| Specification | 3050334 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand Count | 7 Strands |
| Conductor Strand Gauge | 30 |
| Features | Flame Retardant |
| Jacket (Insulation) Diameter | 0.165 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 3 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Usage | Signal, Control |
| Wire Gauge | 22 AWG |
