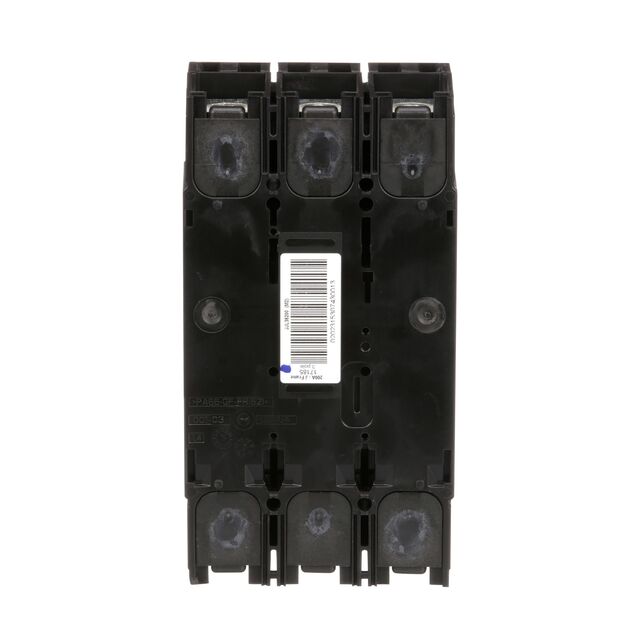

JJL36200
ActiveSCHNEIDER ELECTRIC
MOLDED CASE CIRCUIT BREAKER 600V
JJL36200
ActiveSCHNEIDER ELECTRIC
MOLDED CASE CIRCUIT BREAKER 600V
Description
General part information
JJL36200
Circuit Breaker Thermal Magnetic 200A 600 V AC 250 V DC Toggle Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | JJL36200 |
|---|---|
| Actuator Type | Toggle |
| Approval Agency | UL, CSA |
| Breaker Type | Thermal Magnetic |
| Current Rating | 200 A |
| Illumination | None |
| Mounting Type | Chassis Mount |
| Number of Poles | 3 |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
