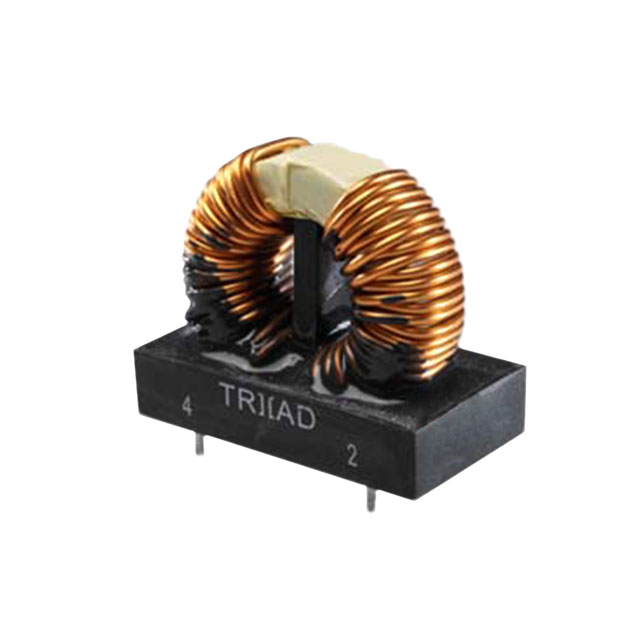

CMT908-V3-B
ActiveTriad Magnetics
CMC 8MH 3.2A 2LN TH ESD
CMT908-V3-B
ActiveTriad Magnetics
CMC 8MH 3.2A 2LN TH ESD
Description
General part information
CMT908-V3-B
8 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 3.2A DCR 120mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CMT908-V3-B |
|---|---|
| Approval Agency | IEC, VDE, CSA, UL |
| Current Rating (Max) | 3.2 A |
| DC Resistance (DCR) (Max) | 120 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.5 in |
| Inductance | 8 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 1.45 in |
| Size / Dimension Width | 0.8 in |
| Voltage Rating - AC | 1500 Vpk |
