9562 060U1000

Active

Belden Inc.

MULTI-PAIR 4CON 24AWG CHRM

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4CON 24AWG CHRM

Technical Specifications

Parameters and characteristics for this part

Specification	9562 060U1000

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Features	UV Resistant
Jacket (Insulation) Diameter [diameter]	5.06 mm
Jacket (Insulation) Diameter [diameter]	0.199 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2576
Usage	Audio, Instrumentation, Control
Wire Gauge	24 AWG

Part	Conductor Strand	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Features	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Number of Conductors	Usage	Ratings	Conductor Material	Length	Length	Jacket Color	Jacket (Insulation) Material	Cable Type
Belden Inc. 9562 060U1000	Solid	5.06 mm	0.199 in	24 AWG	UV Resistant	-20 C	80 C	Poly-Vinyl Chloride (PVC)	4	Audio Control Instrumentation	UL Style 2576	Copper Tinned	1000 ft	304.8 m	Chrome	Poly-Vinyl Chloride (PVC)	Multi-Pair

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.46

General part information

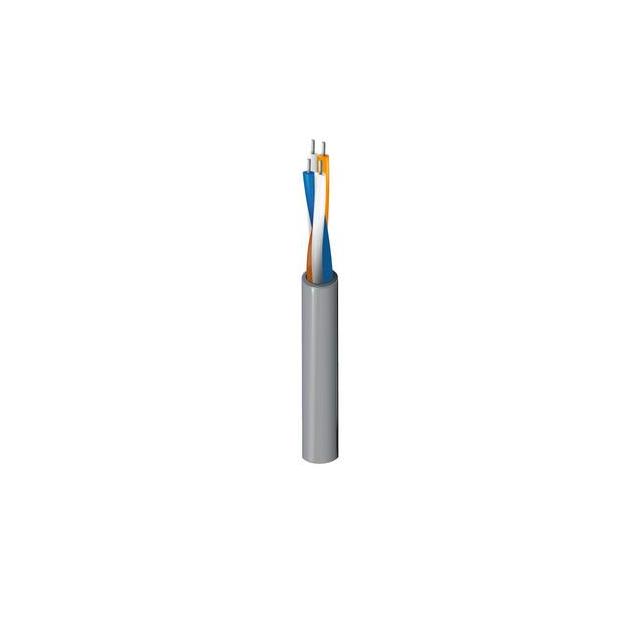

4 (2 Pair Twisted) Conductor Multi-Pair Cable Chrome 24 AWG 1000.0' (304.8m)
