IB047-SMSMPF-4.0IN
ActiveMcGill Microwave Systems
CBL ASSY SMA-SMP JACK-PLUG 4"
IB047-SMSMPF-4.0IN
ActiveMcGill Microwave Systems
CBL ASSY SMA-SMP JACK-PLUG 4"
Description
General part information
IB047-SMSMPF-4.0IN

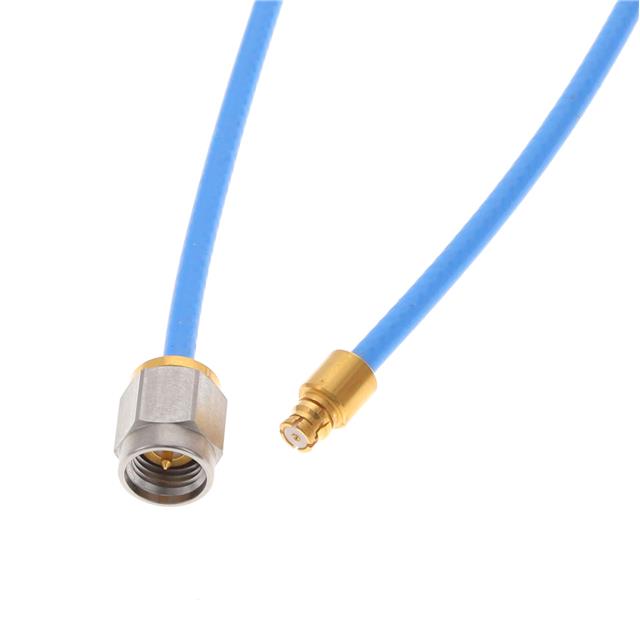

Cable Assembly Coaxial SMA to SMP 0.047" Flexible Cable 4.000" (101.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | IB047-SMSMPF-4.0IN |
|---|---|
| 1st Connector | SMP Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Diameter | 0.047 " |
| Cable Impedance | 50 Ohms |
| Cable Outer Diameter | 0.047 " |
| Cable Type | Flexible Cable |
| Cable Type Size | 0.047, 0.047 " |
| Color | Blue |
| Frequency - Max | 18 GHz |
| Length | 4 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Style | SMA, SMP |
