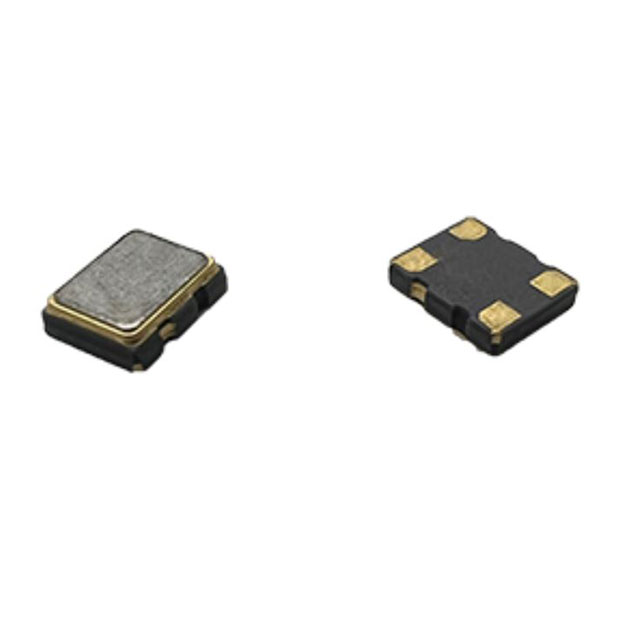

UCF4027035GG005000-32.0M
ActivePletronics, Inc
CRYSTAL OSC TCXO 32.0M CLIPPED S
UCF4027035GG005000-32.0M
ActivePletronics, Inc
CRYSTAL OSC TCXO 32.0M CLIPPED S
Description
General part information
UCF4027035GG005000-32.0M
32 MHz TCXO Clipped Sine Wave Oscillator 2.7V ~ 3.5V 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | UCF4027035GG005000-32.0M |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 3 mA |
| Frequency | 32 MHz |
| Frequency Stability | 500 ppb |
| Height - Seated (Max) | 0.031 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | TCXO |
| Voltage - Supply (Maximum) | 3.5 V |
| Voltage - Supply (Minimum) | 2.7 V |
