ASPI-0428S-181M-T
ActiveAbracon LLC
FIXED IND 180UH 220MA 1.54OHM SM
ASPI-0428S-181M-T
ActiveAbracon LLC
FIXED IND 180UH 220MA 1.54OHM SM
Description
General part information
ASPI-0428S-181M-T

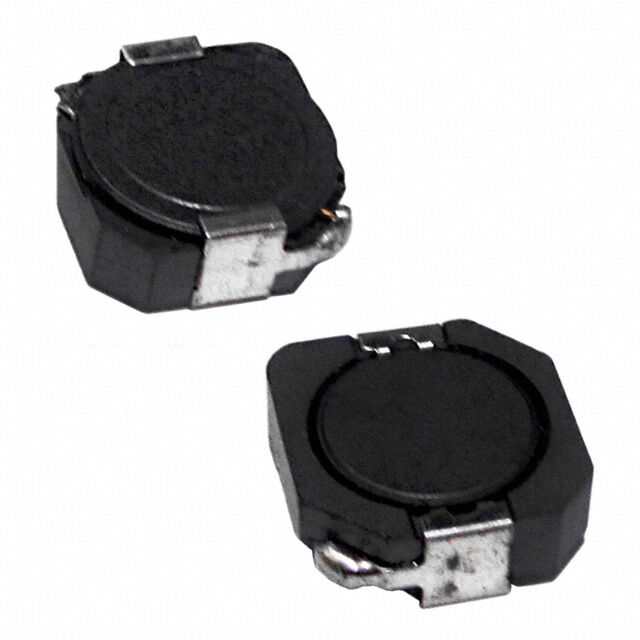

180 µH Shielded Drum Core, Wirewound Inductor 220 mA 1.54Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | ASPI-0428S-181M-T |
|---|---|
| Current Rating | 0.22 A |
| DC Resistance (DCR) (Max) | 1.54 Ohm |
| Height - Seated (Max) | 0.118 in |
| Inductance | 180 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.185 in |
| Size / Dimension Width | 0.185 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
