LCCA30632-FT3
ActivePasternack
SMA FBH TO TNC M USING LC085TBJ,
LCCA30632-FT3
ActivePasternack
SMA FBH TO TNC M USING LC085TBJ,
Description
General part information
LCCA30632-FT3

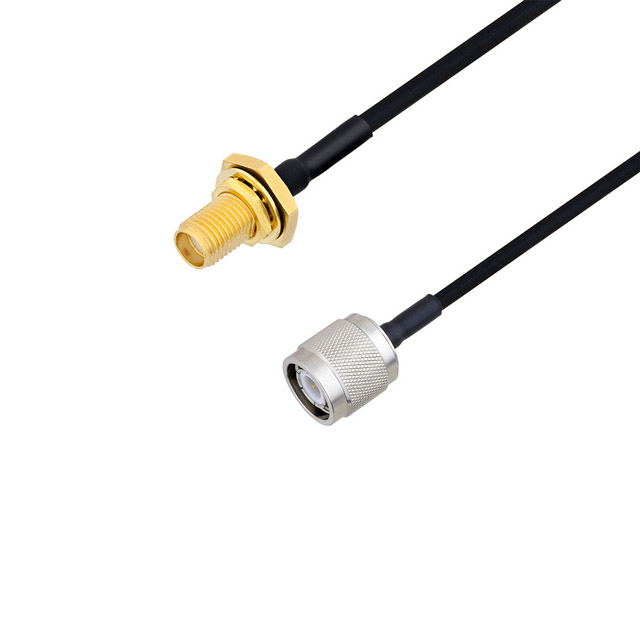

Cable Assembly Coaxial SMA to TNC LC085TBJ 36.00" (914.40mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30632-FT3 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TBJ |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 36 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, TNC |
