41604
ActiveTE Connectivity AMP Connectors
CONN RING D-SHAPE 12-14AWG #1/4
41604
ActiveTE Connectivity AMP Connectors
CONN RING D-SHAPE 12-14AWG #1/4
Description
General part information
41604

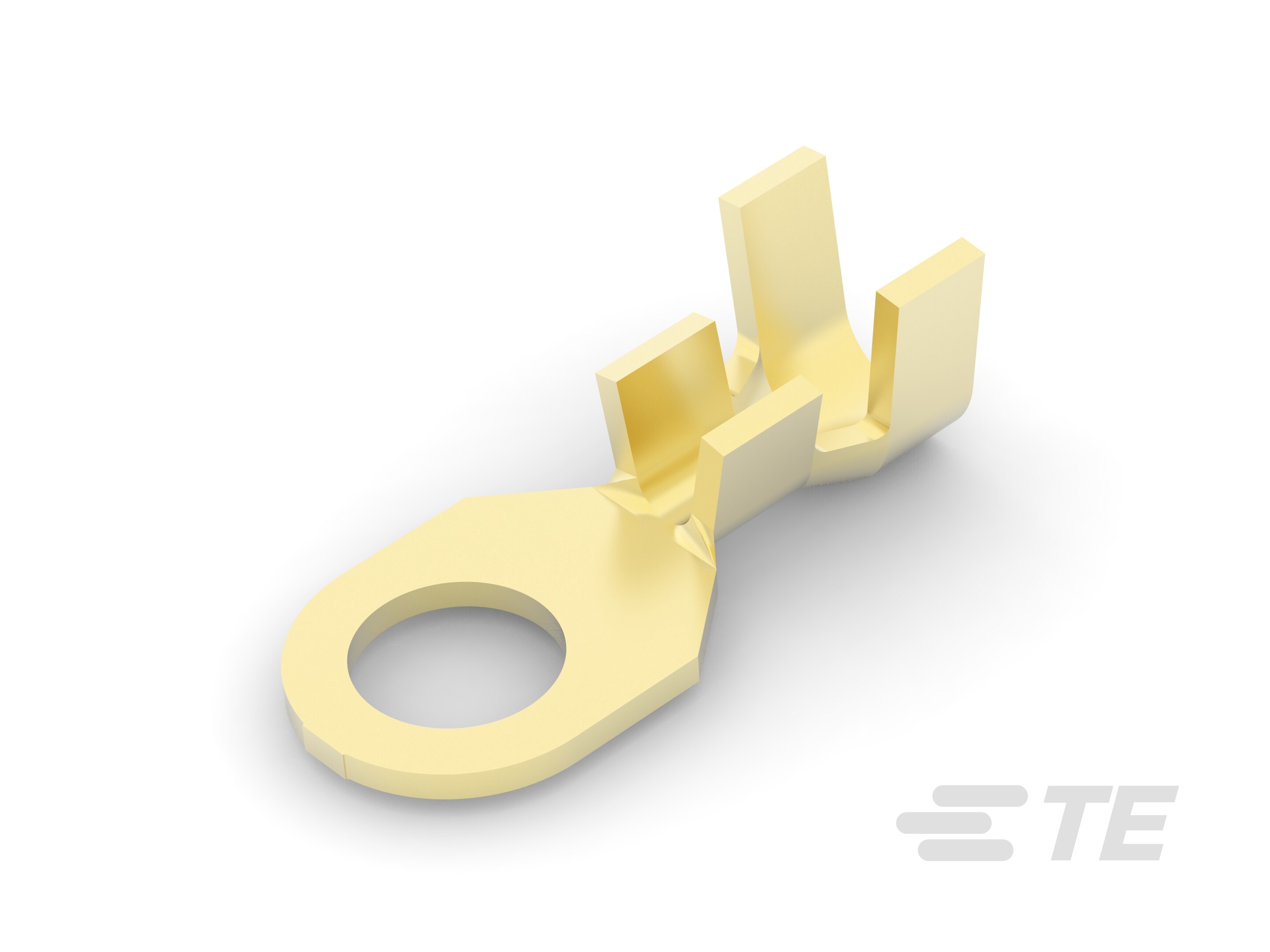

Closed Ring Tongue Terminal, 14 – 12 AWG, M6 Stud, 6.73 mm [.265 in] Stud Diameter, Open Barrel, Straight, Unplated Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 41604 |
|---|---|
| Contact Material | Brass |
| Insulation | Non-Insulated |
| Length - Overall | 0.95 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.25 Stud |
| Terminal Type | D-Shaped |
| Termination | Crimp |
| Thickness | 0.04 in |
| Width - Outer Edges | 0.425 in |
| Wire Gauge (AWG) (Max) | 14 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
