826576-2

LTB

TE Connectivity AMP Connectors

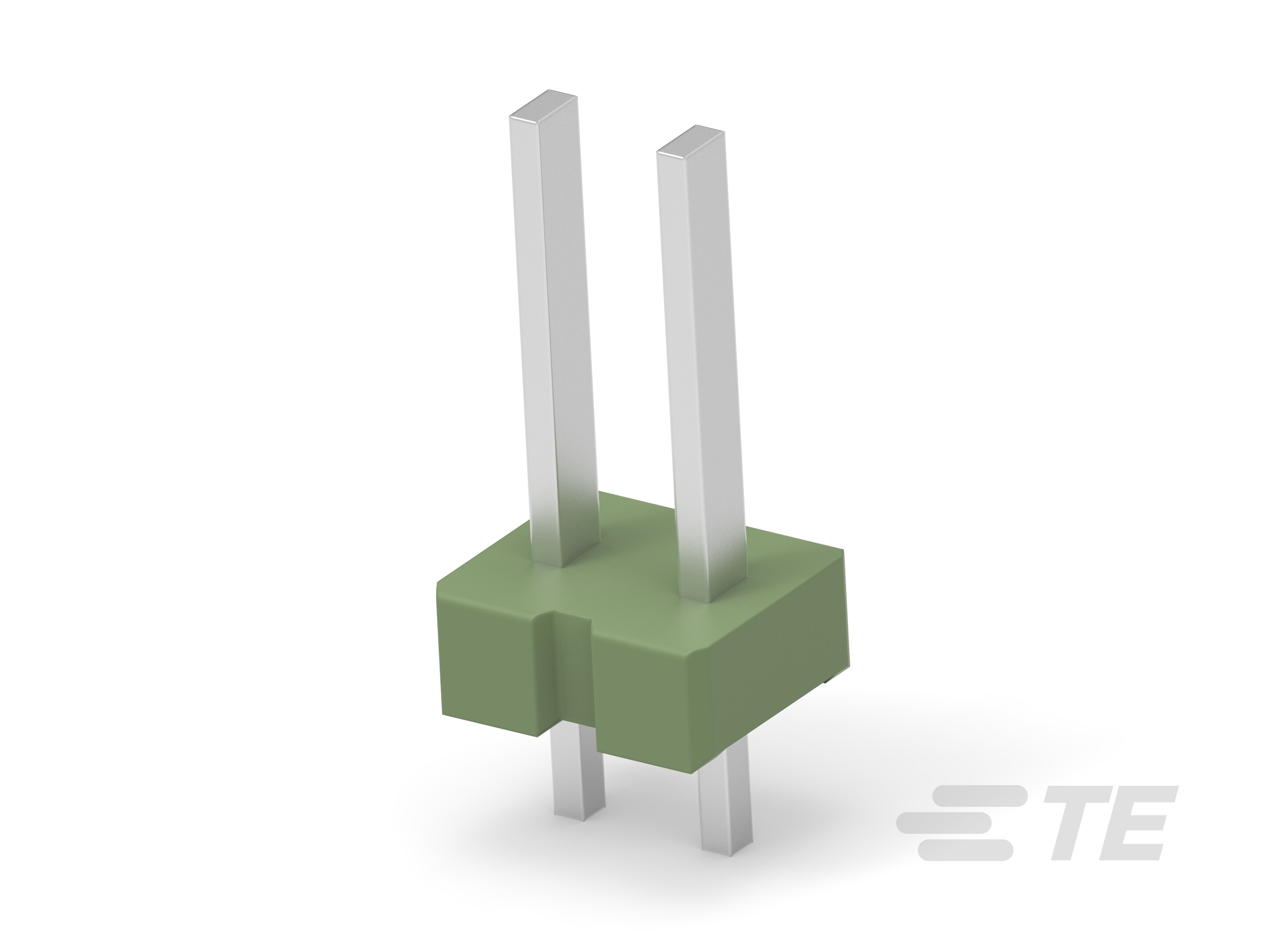

2P MOD 1 UNSHROUDED HEADER, ST, TIN

Find alt

Alpha

826576-2

LTB

TE Connectivity AMP Connectors

2P MOD 1 UNSHROUDED HEADER, ST, TIN

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

AMPMODU MOD 1 Series

PCB Mount Header, Vertical, Board-to-Board, 2 Position, 3.96 mm [.156 in] Centerline, Breakaway, Tin-Lead, Through Hole - Solder, Green, AMPMODU MOD 1

Technical Specifications

Parameters and characteristics for this part

Specification	826576-2

Connector Type	Breakaway, Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	100 µin
Contact Length - Mating	0.433 in
Contact Length - Post	0.134 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Green
Insulation Height	0.118 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.449 in
Pitch - Mating	0.156 in
Shrouding	Unshrouded
Style	Board, Board or Cable
Termination	Solder

AMPMODU MOD 1 Series

...

Part	Number of Rows	Fastening Type	Contact Finish - Post	Pitch - Mating	Insulation Height	Shrouding	Mounting Type	Contact Finish - Mating	Overall Contact Length	Contact Length - Post	Contact Material	Number of Positions	Insulation Material	Connector Type	Style	Current Rating	Contact Length - Mating	Insulation Color	Contact Finish Thickness - Mating	Contact Shape	Termination	Number of Positions Loaded	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)	Contact Termination	Contact Finish Thickness	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Pin or Socket	Contact Finish	Insulation	Mounting Hole Diameter	Pin Size - Above Flange (Shape)	Pin Size - Above Flange Width	Pin Size - Above Flange Length	Length - Overall	Pin Size - Below Flange Shape	Pin Size - Below Flange Width	Pin Size - Below Flange Length	Terminal Style	Terminal Type
TE Connectivity AMP Connectors 2-85829-0	1	Push-Pull	Gold	0.156 in	0.125 in	Unshrouded	Through Hole	Gold	0.655 in	0.125 in	Brass	20	Thermoplastic	Header	Board Board or Cable	5 A	0.405 in	Black	30 µin	Rectangular	Solder	All	105 °C	-65 °C	UL94 V-0	Male Pin
TE Connectivity AMP Connectors 280611-1	1	Detent Lock	Tin	0.156 in	0.913 in	Shrouded - 2 Wall	Through Hole	Tin	0.642 in	0.13 in	Brass	6	Glass Filled Polycarbonate	Header	Board Board or Cable		0.394 in	Green		Rectangular	Solder	All			UL94 V-0	Male Pin
TE Connectivity AMP Connectors 1-87247-9	1	Push-Pull	Gold	0.156 in	0.125 in	Unshrouded	Through Hole	Gold	0.655 in	0.125 in	Brass	19	Thermoplastic	Header	Board Board or Cable	5 A	0.587 in	Black	30 µin	Rectangular	Solder	All	105 °C	-65 °C	UL94 V-0	Male Pin
TE Connectivity AMP Connectors 87984-8	1	Push-Pull	Gold	0.156 in	0.3 in		Through Hole	Gold		0.112 in	Phosphor Bronze	8	Thermoplastic	Bottom Entry Receptacle	Board Board or Cable			Black	30 µin	Square	Solder	All	105 °C	-65 °C	UL94 V-0	Female Socket	Flash	Flash
TE Connectivity AMP Connectors 87113-4	1		Gold	0.156 in	0.125 in	Unshrouded	Through Hole	Gold	1.126 in	0.125 in	Brass	4	Thermoplastic	Header	Board		0.875 in	Black	30 µin	Square	Solder	All				Male Pin	Flash	Flash
TE Connectivity AMP Connectors 85493-4																													PCB Solder	30 µin 50 µin	18 AWG	26 AWG	Socket	Gold
TE Connectivity AMP Connectors 1-5086147-0							Through Hole				Brass										Press-Fit									100 µin				Tin	Non-Insulated	0.078 in	Rectangular	0.065 in	0.031 in	0.998 in	Rectangular	0.065 in	0.031 in	Smooth	Single Post
TE Connectivity AMP Connectors 1-87258-0	1	Push-Pull	Gold	0.156 in	0.25 in	Unshrouded	Right Angle Through Hole	Gold		0.15 in	Brass	10	Thermoplastic	Header	Board Board or Cable	5 A	0.5 in	Black	15 µin	Rectangular	Solder	All	105 °C	-65 °C	UL94 V-0	Male Pin
TE Connectivity AMP Connectors 87988-5	1	Push-Pull	Gold	0.156 in	0.175 in		Right Angle Through Hole	Gold		0.145 in	Phosphor Bronze	5	Thermoplastic	Receptacle	Board Board or Cable			Black	30 µin	Square	Solder	All	105 °C	-65 °C	UL94 V-0	Female Socket	Flash	Flash
TE Connectivity AMP Connectors 280617-1	1	Detent Lock	Tin	0.156 in	0.346 in	Shrouded - 2 Wall	Right Angle Through Hole	Tin		0.126 in	Brass	6	Glass Filled Polycarbonate	Header	Board Board or Cable		0.394 in	Green		Rectangular	Solder	All			UL94 V-0	Male Pin
