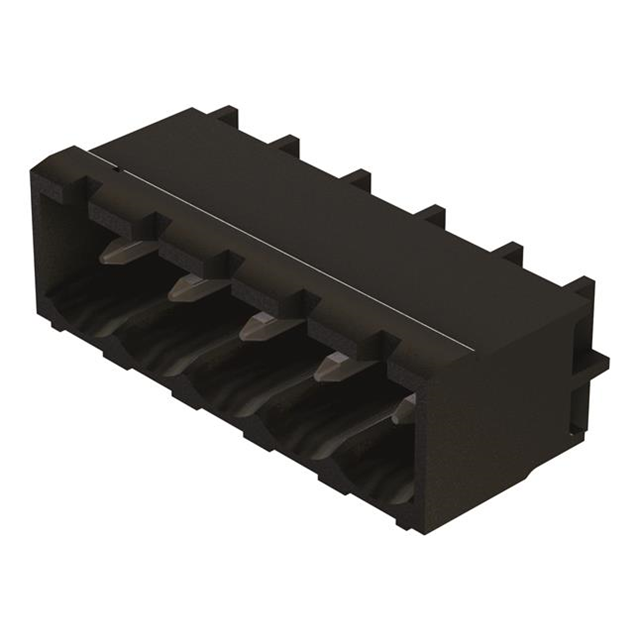

14120216002000

14120816002000

Active
HARTING

PIN HEADER, PCB HEADER, BOARD-TO-BOARD, 5 MM, 1 ROWS, 8 CONTACTS, THROUGH HOLE

Find alt
14120216002000

14120816002000

Active
HARTING

PIN HEADER, PCB HEADER, BOARD-TO-BOARD, 5 MM, 1 ROWS, 8 CONTACTS, THROUGH HOLE

Find alt

Description

General part information

14120816002000

8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole

Technical Specifications

Parameters and characteristics for this part

Specification14120816002000
ColorBlack
Contact MaterialCopper Alloy
Contact Mating FinishTin
Current - UL15 A
Header OrientationRight Angle
Header Orientation Angle90 °
Housing MaterialPPA, PA, Polyphthalamide, Polyamide, Nylon
Insulation Height0.317 in
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Levels1
Number of Positions8
Operating Temperature (Max)110 °C
Operating Temperature (Min)-40 °C
Pitch0.197 in
Positions Per Level8
Termination StyleSolder
TypeShrouded (4 Side), Male Pins, Header
Voltage - UL600 V
