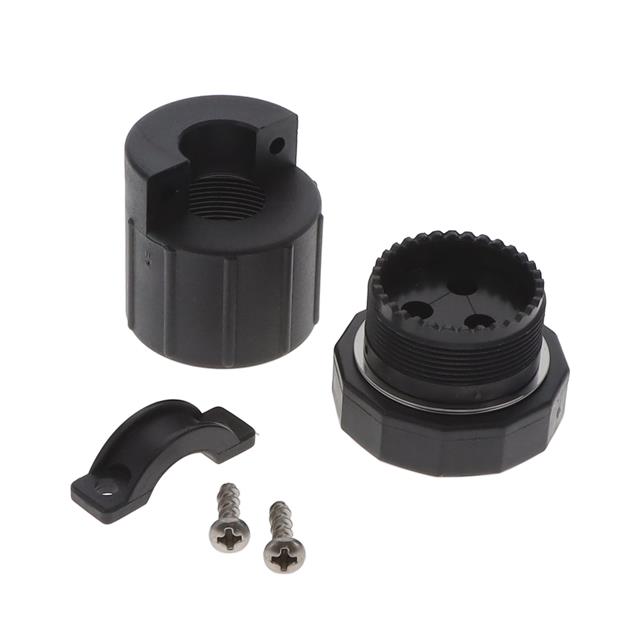

FR19FP312K1/AA
ObsoleteMcGill Microwave Systems
CIRCULAR CONNECTOR
FR19FP312K1/AA
ObsoleteMcGill Microwave Systems
CIRCULAR CONNECTOR
Description
General part information
FR19FP312K1/AA
3 Position Circular Connector Plug Housing Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | FR19FP312K1/AA |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 12 |
| Contact Type | Crimp |
| Fastening Type | Push-Pull |
| Housing Color | Black |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Insert Material | DAP, Glass Filled, Diallyl Phthalate |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Glass Filled, Polyester |
| Shell Size - Insert | 312 |
| Shell Size - Insert | 312 |
| Shielding | Unshielded |
| Type | For Female Sockets |
