Description
General part information

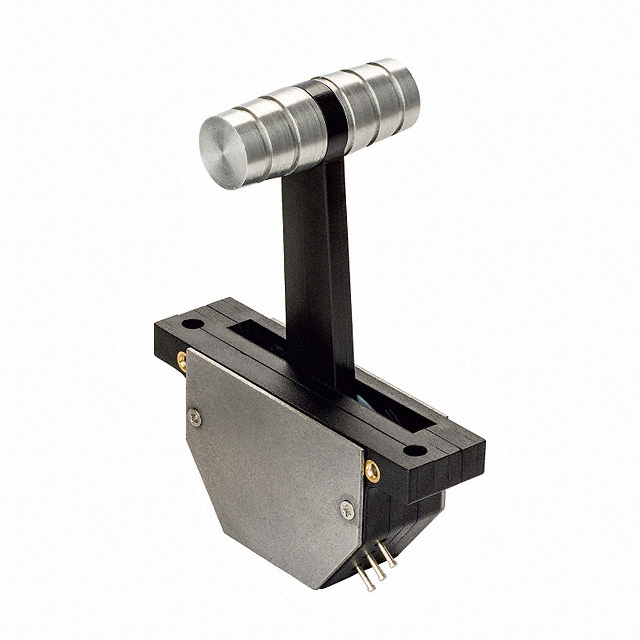

SN101SS
Joystick, 1 - Axis Analog (Hall Effect) Output
Technical Specifications
Parameters and characteristics for this part
| Specification | SN101SS |
|---|---|
| Actuator Type | T-Handle |
| Axis Count | 1 Axis |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Panel Mount |
| Operating Force | 50 gf |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output | Analog (Hall Effect) |
| Panel Cutout Length | 56 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 7 mm |
| Switch Function | 2-Way Directional |
| Termination Style | Solder Turret |
| Type | Joystick, 1 - Axis |
| Voltage - Supply | 5 VDC |
