176283-1
ActiveTE Connectivity AMP Connectors

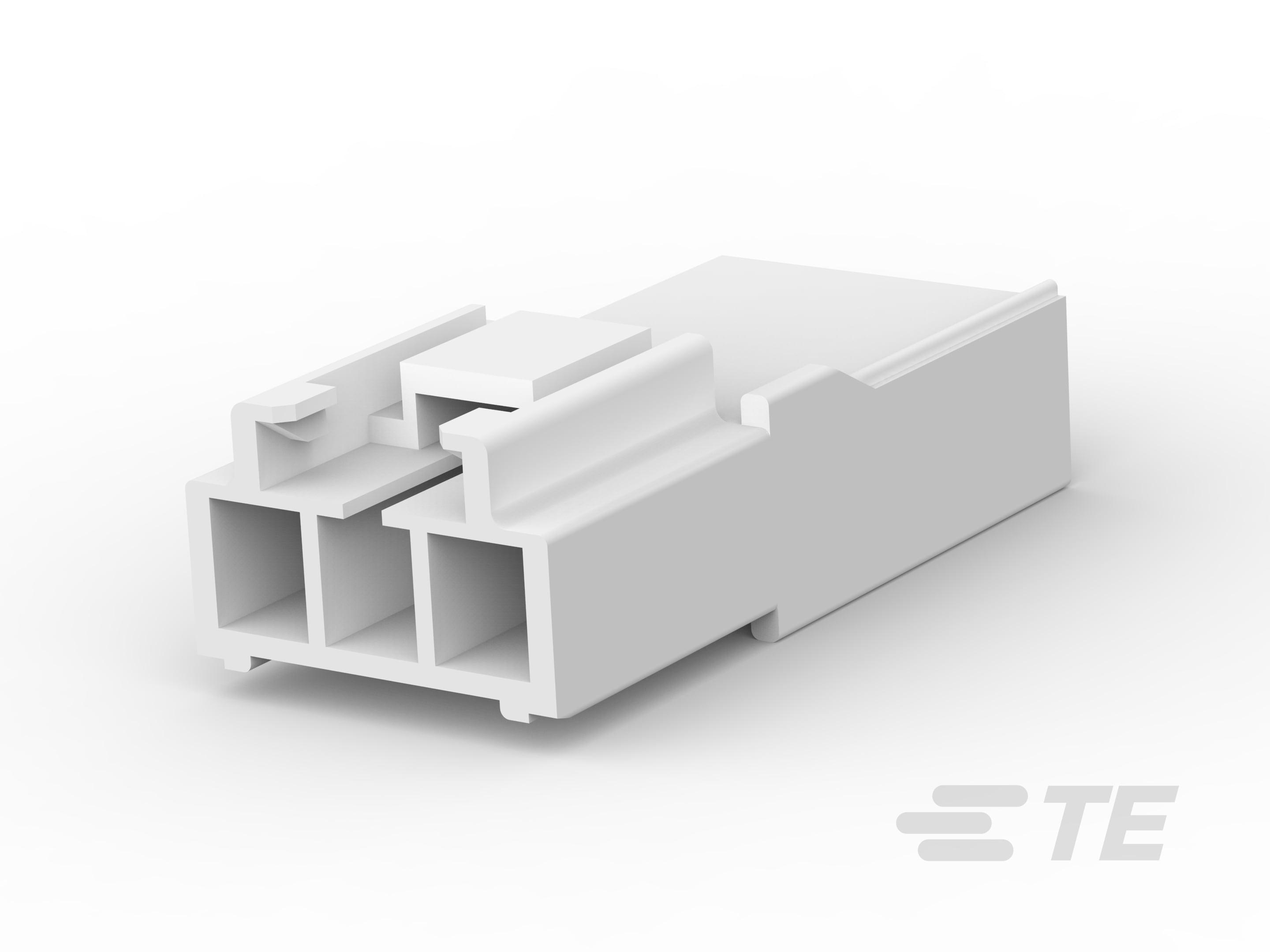

AMP UNIVERSA POWR CAP 3P ROHS COMPLIANT: YES
176283-1
ActiveTE Connectivity AMP Connectors
AMP UNIVERSA POWR CAP 3P ROHS COMPLIANT: YES
Description
General part information
176283-1
3 Position, Receptacle, Housing, Crimp, Wire-to-Wire, UL 94V-0, 3.96 mm [.156 in] Centerline, 1 Row, 300 VAC, Wire & Cable, AMP Universal Power
Technical Specifications
Parameters and characteristics for this part
| Specification | 176283-1 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
AMP Universal Power Connectors
AMP UNIVERSAL POWER CONNECTORS REPORT
AMP UNIVERSAL POWER CONNECTOR SERIES
AMP Lattice Connector
ENG_CD_176283_C.pdf
Datasheet
Crimping of Universal Power Contact
AMP Universal Power Connector
XREF
Verification report for UP housing with new alternative material
Product Change Notice EN
176283-1 | Datasheet
