16290-3
ActiveEaton - Electronics Division

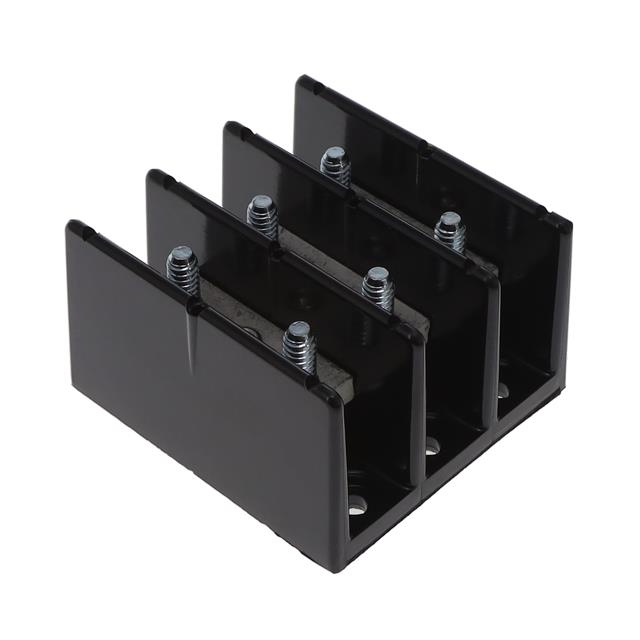

POWER STUD BLOCK 3POS 150A 600V
16290-3
ActiveEaton - Electronics Division
POWER STUD BLOCK 3POS 150A 600V
Description
General part information
16290-3
3 Pole Power Stud Terminal Block 150 A 600 V
Technical Specifications
Parameters and characteristics for this part
| Specification | 16290-3 |
|---|---|
| Current Rating | 150 A |
| Line Side Connection Type | Stud |
| Line Side Connections Per Pole | 1 |
| Line Side Stud Length | 20 in |
| Line Side Stud Width | 0.75 in |
| Line Side Wire Diameter | 0.25 in |
| Load Side Connection Type | Stud |
| Load Side Connections Per Pole | 1 |
| Load Side Wire/Stud Size | 1/4, 20x3/4 Stud |
| Number of Poles | 3 |
| Type | Power Stud Terminal Block |
| Voltage - Rated | 600 V |
