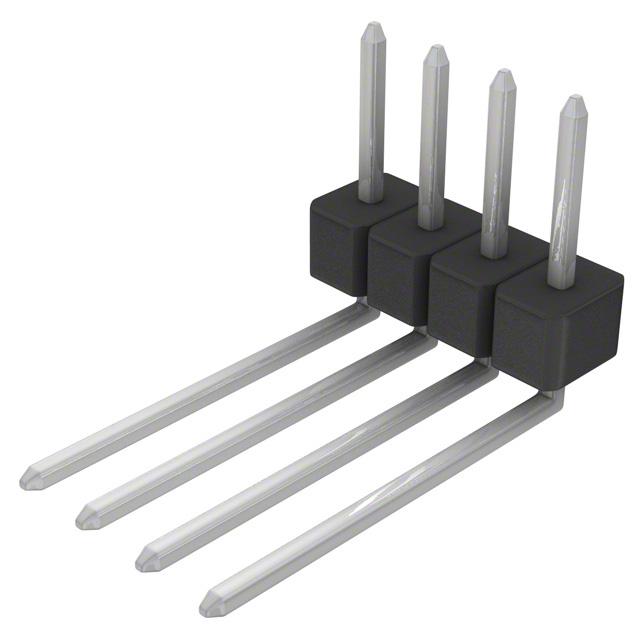

PEC04SBEN

Active

Sullins Connector Solutions

CONN HEADER R/A 4POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PEC04SBEN

Active

Sullins Connector Solutions

CONN HEADER R/A 4POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC04SBEN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	12.7 mm
Contact Length - Post	0.5 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC04 Series

Part	Number of Positions	Number of Rows	Contact Material	Fastening Type	Number of Positions Loaded	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Insulation Material	Pitch - Mating	Pitch - Mating	Insulation Color	Style	Insulation Height	Insulation Height	Contact Finish - Post	Mounting Type	Termination	Material Flammability Rating	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Contact Length - Mating [x]	Contact Length - Mating	Contact Type	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Contact Length - Mating [x]
Sullins Connector Solutions PEC04DAEN	8	2	Phosphor Bronze	Push-Pull	All	3 A	2.54 mm	0.1 in	13.21 mm	0.52 "	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Black	Board to Board Cable	0.1 in	2.54 mm	Tin	Through Hole	Solder	UL94 V-0	Unshrouded	125 °C	-65 ░C	0.85 in	21.59 mm	2.54 çm	100 çin	2.54 µm	100 µin	Square	0.23 in	5.84 mm	Male Pin	Breakaway Header
Sullins Connector Solutions PEC04DAGN	8	2	Phosphor Bronze	Push-Pull	All	3 A	2.54 mm	0.1 in			Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Black	Board to Board Cable	0.1 in	2.54 mm	Tin	Through Hole	Solder	UL94 V-0	Unshrouded	125 °C	-65 ░C	1.05 in	26.67 mm	2.54 çm	100 çin	2.54 µm	100 µin	Square	0.23 in	5.84 mm	Male Pin	Breakaway Header	18.29 mm	0.72 "
Sullins Connector Solutions PEC04SABN	4	1	Phosphor Bronze	Push-Pull	All	3 A			5.84 mm	0.23 in	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Black	Board to Board Cable	0.1 in	2.54 mm	Tin	Through Hole	Solder	UL94 V-0	Unshrouded	125 °C	-65 ░C	0.56 in	14.22 mm	2.54 çm	100 çin	2.54 µm	100 µin	Square	0.23 in	5.84 mm	Male Pin	Breakaway Header
Sullins Connector Solutions PEC04DAHN	8	2	Phosphor Bronze	Push-Pull	All	3 A	2.54 mm	0.1 in			Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Black	Board to Board Cable	0.1 in	2.54 mm	Tin	Through Hole	Solder	UL94 V-0	Unshrouded	125 °C	-65 ░C	1.15 in	29.21 mm	2.54 çm	100 çin	2.54 µm	100 µin	Square	0.23 in	5.84 mm	Male Pin	Breakaway Header	20.83 mm	0.82 in
Sullins Connector Solutions PEC04SBEN	4	1	Phosphor Bronze	Push-Pull	All	3 A			12.7 mm	0.5 in	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Black	Board to Board Cable	0.14 in	3.56 mm	Tin	Through Hole Right Angle	Solder	UL94 V-0	Unshrouded	125 °C	-65 ░C			2.54 çm	100 çin	2.54 µm	100 µin	Square	0.23 in	5.84 mm	Male Pin	Breakaway Header
Sullins Connector Solutions PEC04DABN	8	2	Phosphor Bronze	Push-Pull	All	3 A	2.54 mm	0.1 in	5.84 mm	0.23 in	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Black	Board to Board Cable	0.1 in	2.54 mm	Tin	Through Hole	Solder	UL94 V-0	Unshrouded	125 °C	-65 ░C	0.56 in	14.22 mm	2.54 çm	100 çin	2.54 µm	100 µin	Square	0.23 in	5.84 mm	Male Pin	Breakaway Header
Sullins Connector Solutions PEC04DBAN	8	2	Phosphor Bronze	Push-Pull	All	3 A	2.54 mm	0.1 in	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Black	Board to Board Cable	0.24 in	6.1 mm	Tin	Through Hole Right Angle	Solder	UL94 V-0	Unshrouded	125 °C	-65 ░C			2.54 çm	100 çin	2.54 µm	100 µin	Square	0.23 in	5.84 mm	Male Pin	Breakaway Header
Sullins Connector Solutions PEC04SADN	4	1	Phosphor Bronze	Push-Pull	All	3 A					Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Black	Board to Board Cable	0.1 in	2.54 mm	Tin	Through Hole	Solder	UL94 V-0	Unshrouded	125 °C	-65 ░C	0.75 in	19.05 mm	2.54 çm	100 çin	2.54 µm	100 µin	Square	0.23 in	5.84 mm	Male Pin	Breakaway Header	10.67 mm	0.42 in
Sullins Connector Solutions PEC04DACN	8	2	Phosphor Bronze	Push-Pull	All	3 A	2.54 mm	0.1 in			Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Black	Board to Board Cable	0.1 in	2.54 mm	Tin	Through Hole	Solder	UL94 V-0	Unshrouded	125 °C	-65 ░C		0.65 in	2.54 çm	100 çin	2.54 µm	100 µin	Square	0.23 in	5.84 mm	Male Pin	Breakaway Header	8.13 mm	0.32 in	16.51 mm
Sullins Connector Solutions PEC04DGAN	8	2	Phosphor Bronze	Push-Pull	All	3 A	2.54 mm	0.1 in	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	0.1 in	2.54 mm	Black	Board to Board Cable	0.24 in	6.1 mm	Tin	Through Hole Right Angle	Solder	UL94 V-0	Unshrouded	125 °C	-65 ░C			2.54 çm	100 çin	2.54 µm	100 µin	Square	0.318 "		Male Pin	Breakaway Header				8.08 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.69
		10	$ 0.60
		100	$ 0.50
		500	$ 0.43
		1000	$ 0.36
		5000	$ 0.31
		10000	$ 0.31

Description

General part information

PEC04 Series

Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
